Wholesale Road HDPE Geocell for Sale/Geo Cell / Geoweh for Reinforcement Systems

Shop our high-quality Wholesale Road HDPE Geocell for Sale at competitive prices. We are a factory specializing in reinforcement systems. Geo Cell/Geoweh available.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HS-Geocell
Thickness
1.1mm-1.6mm
Surface
Non-Perforated
Certifications
Ce ISO14001 ISO9001
Welding Distance
330mm-1000mm
Expanding Size
4.5*5 M2
Name
1mm Thickness Textured Perforated Geocell
Transport Package
Export Package or Per Demand
Specification
Height: 5cm
Trademark
Haisan
Origin
Qingdao, China
HS Code
392590
Production Capacity
10000 Square Meters Per Month

Product Description

Wholesale road HDPE Geocell for sale/geo cell / geoweh for Reinforcement Systems


Description:

Haisan Geocell is made of a new type of high strength geosynthetics, which is popular with both domestic and abroad, in accordance with GB/T 19274-2003 implementation of the standards, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Easily folding and convenient for transportation. When be in construction, the geocell can be pull into a network and launched into a three dimensional honeycomb grid. As it filled in soil, macadam, concrete or other granular material, constituted to be a construction which has strong side wise restraint and high rate of stiffness.



 Wholesale Road HDPE Geocell for Sale/Geo Cell / Geoweh for Reinforcement Systems

Technicical-mechanical property of the product:

specification height of chamber(cm) Weld spacing (mm) Expanding size(m2)
DTGS 5 5 400 4.5*5
DTGS 5  5 300 6.5*4.5
DTGS 8  8 1000 13.2*4.5
DTGS 8 8 400 4.5*5
DTGS 8 8 330 6.5*4.5
DTGS 10 10 400 4.5*5
DTGS 10 10 330 6.5*4.5
DTGS 15 15 400 4.5*5
DTGS 15 15 330 6.5*4.5
DTGS 20 20 400 4.5*5
DTGS 20 20 330 6.5*4.5


Item Term Test measure
Tensile strengthmeter for piece kmaterial  MPa ≥23 GB1040-1992
Weld tensile strength N/10cm ≥1000 GB1040-1992
Tensile failure% ≥600 GB1040-1992
Low embrittlement temperature  ≤-23

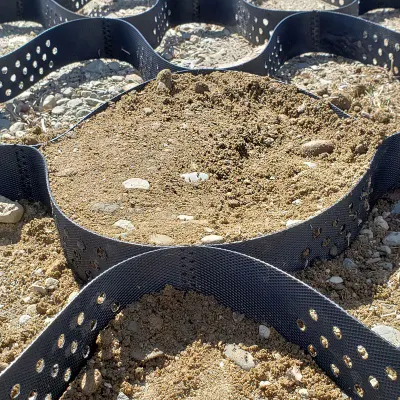

Detailed Images:
Wholesale Road HDPE Geocell for Sale/Geo Cell / Geoweh for Reinforcement Systems

Wholesale Road HDPE Geocell for Sale/Geo Cell / Geoweh for Reinforcement Systems



Features:

1.light material, resistant o wear and chemical properties stability, lightfastness aging, acid and basic resistance, applicable to the different soil and geological conditions of the desert.

2.The lateral limits and higher anti-skid and anti-deformation, effectively increase the carrying capacity of roadbed and decentralized load.

3.High capacity and good dynamic performance, anti-erosion ability.

4.A high degree of geocell change, such as welding geometry from different projects can meet the needs.

5.Flexibility,small transport to connect to facilitate the construction speed.

6.The construction of local materials can reduce construction costs, superimposed with convenient for transportation.

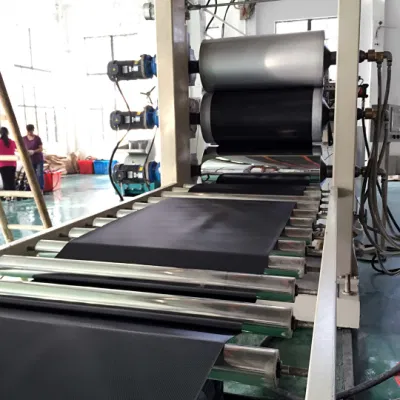

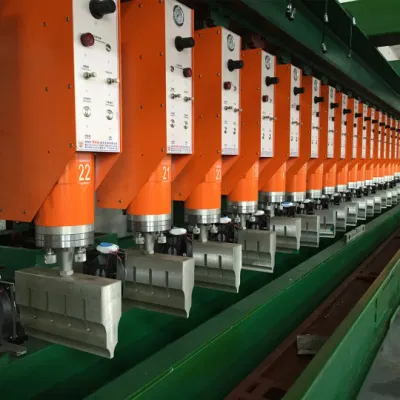

Production line:
Wholesale Road HDPE Geocell for Sale/Geo Cell / Geoweh for Reinforcement Systems

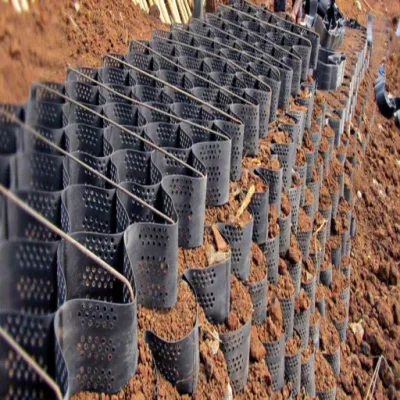

Application

1.stabling railway bed

2.Stabling road soft ground treatment

3.withstanding lad capacities guard against the retaining wall

4.shallow water river courses to govern

5.pipelines and sewer's structural supports

6.prevent the landslide and the load bearing gravity mixed style retaining wall

7.independent walls,the wharf, against slope dike

8.Deserts, the beach and the river bed, the river bank managements.
Wholesale Road HDPE Geocell for Sale/Geo Cell / Geoweh for Reinforcement Systems
Wholesale Road HDPE Geocell for Sale/Geo Cell / Geoweh for Reinforcement Systems



Certificate:
Wholesale Road HDPE Geocell for Sale/Geo Cell / Geoweh for Reinforcement Systems

Wholesale Road HDPE Geocell for Sale/Geo Cell / Geoweh for Reinforcement Systems
