White Color One Membrane Two Geotextile Composite Geomembrane

White Color One Membrane Two Geotextile Composite Geomembrane - Get high-quality products from our factory. Durable, reliable, and made to last.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Composite geomembrane
Thickness
0.1~2.00mm
Width
2500mm~10000mm
Raw Material
PE EVA etc.
Free Sample
Accept
Unit Area Weight
300~2500g
Transport Package
Nylon Bag
Specification
2mm thickness
Trademark
HAISAN
Origin
China
HS Code
3920109090
Production Capacity
100000m2/Week

Product Description

white color one membrane two geotextile Composite geomembrane
Composite Geomembrane

Product principle:
Composite geomembrane is a new type of anti-seepage material made by infrared ray heat with geotextile and geomembrane (PE ,EVA etc.)

Product classification:
One-textile one-membrane, two-textile one-membrane,N-textile N-membrane.
Product performance:
High puncture-resistance, high friction coefficient, perfect extend, high deformation modulus, excellent performance of chemical erosion resistance, good aging-resistance, good anti-seepage, no influence by climate.
Product main use:
Anti-seepage, obstruction, reinforce, crack-resistance of irrigation works, environment protection, construction, roads, tunnel etc.
Product specification:
Unit area weight: 300~2500g, PE thickness: 0.1~1.5mm, Width: 4m~6m
Physical-mechanical property of the product:

Quality in unit area, g/M2 400 500 600 700 800 900 1000 Note
Thickness.mm 0.25-0.35 0.3-0.5
Index Breaking strength. KN/m 5 7.5 10 12 14 16 18 Length and width
CBR bursting strength, KN 1.1 1.5  1.9  2.2  2.5  2.8  3.0
Tearing strength,KN 0.15  0.25  0.32  0.40  0.48  0.56  0.62  Length and width
Hydrostatic pressure index:
Thickness.mm 0.2  0.3  0.4  0.5  0.6  0.7  0.8  Note
One-textile one-membrane 0.4  0.5  0.6  0.8  1.0  1.2  1.4
Two-textile one-membrane 0.5  0.6  0.8  1.0  1.2  1.4  1.6

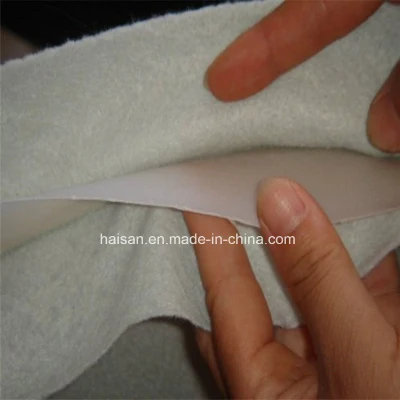

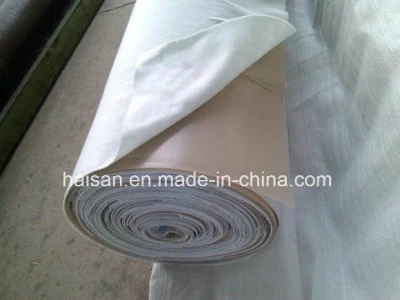

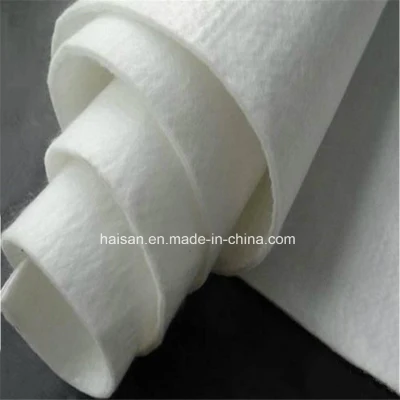

Photos show:

White Color One Membrane Two Geotextile Composite Geomembrane
White Color One Membrane Two Geotextile Composite Geomembrane



White Color One Membrane Two Geotextile Composite Geomembrane


Production Line:
White Color One Membrane Two Geotextile Composite Geomembrane
Certificate:
White Color One Membrane Two Geotextile Composite Geomembrane
