Polyester Geogrid for Slopes Reinforcement

Looking for durable polyester geogrid for slopes reinforcement? Look no further than our factory for high-quality products. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Classification
Polyester Geogrid
Material
Polyester
Elongation
<13%
Mesh Size
12.7*12.7, 25.4*25.4, or as Request.
Types
Self-Adhesive or Without Glue Available
Popular Roll Width
3.9m, 5.8m
Roll Length
50-300m
Transport Package
Inner Pipe + Outside Bag or Film
Specification
2-6m width
Origin
China
HS Code
5904900000
Production Capacity
20000m2 Per Day

Product Description


Polyester/PET Geogrid is using high strength polyester fiber as raw material which is warp knitted bi-directionally and coated with PVC or bitumen. Our strength of Polyester/PET Geogrid ranges from 30KN to 400KN,with elongation less than 13%. Polyester/PET Geogrid plays an important role in strengthening the shear resistance and strengthening the whole soil and the load force. It is widely used in many national key projects, such as highway, railway retaining walls, bridge abutments, seawalls, and dikes.
By the way, we can product both biaxial and uniaxial polyester/PET geogrid. We have ISO certificates for this product.

Polyester Geogrid for Slopes Reinforcement

Technical Data Sheet:

Polyester Biaxial Geogrid(ISO certificated)
Tensile Strength /KN 30*30 50*50 60*60 80*80 100*100 120*120 150*150 200*200
Elongation/% < 13%
Mesh size/mm 12.7*12.7; 25.4*25.4; 40*40; 50*50
Width/m 1-6
Length/m 50-300
Temperature Resistance(ºC) -100-280
Resin Content/% ≤ 30%
Resistance to Installation Damage %SC/%SW/%GP 95/93/90
Resistance to Long Term Degradation/% 100
Design Life/years 150
Glue Type PVC SBR soakage
Polyester Uniaxial Geogrid(ISO certificated)
Tensile Strength /KN 60*30 80*30 100*30 150*30 180*30 250*30 300*30
Elongation/% < 13%
Material High tenacity polyester
After Treatment PVC Soakage
Mesh size/mm 12.7*12.7; 25.4*25.4; 40*40; 50*50
Width/m 2-6
Length/m 50-300
Temperature Resistance(ºC) -100-280
Resin Content/% ≤ 30%
Resistance to Installation Damage %SC/%SW/%GP 95/93/90
Resistance to Long Term Degradation/% 100
Design Life/years 150
Remark Accept OEM service, maximum strength is 1000kn/m.

Polyester Geogrid for Slopes Reinforcement

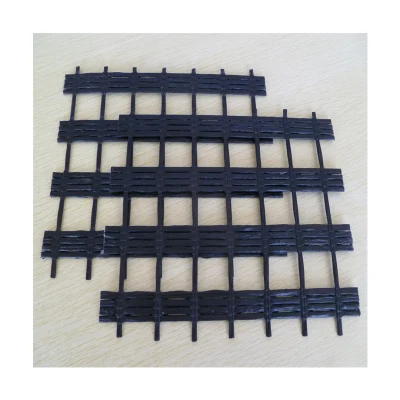

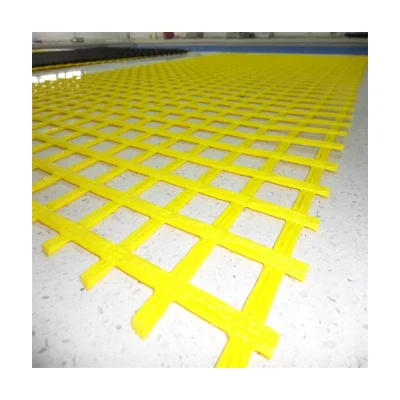

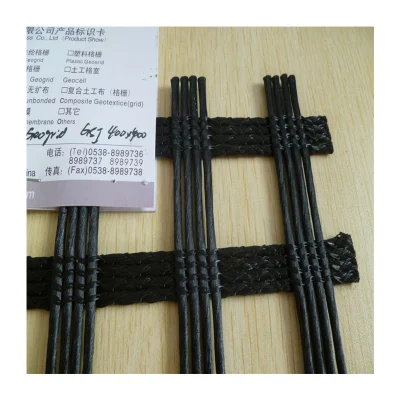

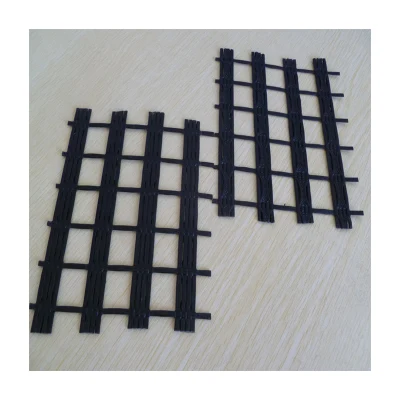

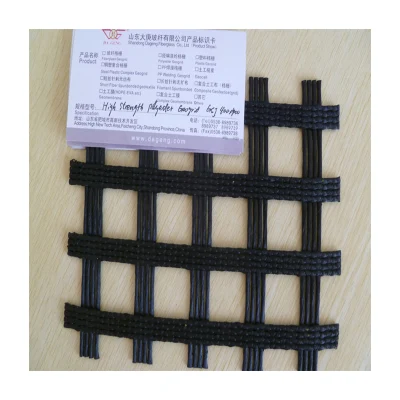

Propduct Photos:

Polyester Geogrid for Slopes Reinforcement Polyester Geogrid for Slopes Reinforcement Polyester Geogrid for Slopes Reinforcement
Our advantages:

1. High tensile strength
2. The elongation rate is small
3. Corrosion resistance and aging resistance
4. Strong bite force with base material
5. Light weight and drainage


Application:

  1. It reinforces old asphalt concrete road surface as well as asphalt layer, and prevents damage;
  2. It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction;
  3. It is used in road expansion and improvement project, control cracks caused by old and new combination position or by uneven sedimentation;
  4. It is used in soft soil base reinforcement treatment. It is favorable for soft soil water separation and concretion,restrains sedimentation effectively, distributes stress uniformly and improves overall strength of road base;
  5. It is sued for preventing contraction crack caused by new road semi-rigid base layer, and reinforces and prevents road surface crack caused by foundation crack reflection.
Polyester Geogrid for Slopes Reinforcement


Package and Delivery:

Package: Inner pipe + outside bag or film.
Delivery: 15 containers per month.
Polyester Geogrid for Slopes Reinforcement
Polyester Geogrid for Slopes Reinforcement

Polyester Geogrid for Slopes Reinforcement
Polyester Geogrid for Slopes Reinforcement

FAQ:

Q: Are you factory or trading company?
A:  We are factory.

Q: Which country did you export?
A: Our products have been exported to many countries all over the world, including USA, Panama, Colombia, Chile, Peru, Ecuador, Russia, UK, Italy, France, Germany, Poland, Hungary, Turkey, Romania, Israel, India, Philippines, Singapore, Vietnam, Thailand, Indonesia, Australia, New Zealand...

Q: May I have your samples for testing?
A: Yes. We are glad to provide free samples within 3 days.

Q: What is your MOQ?
A: Normally, MOQ is one 20'GP container. But we also accept LCL for trial order.

Q: What's the payment term?
A:  T/T,L/C.
