Natural Sodium Bentonite Geosynthetic Clay Liner Gcl for Environmental Protection

Get top-quality natural sodium bentonite geosynthetic clay liners (GCL) for environmental protection from our factory. Shop now for superior products!" Character count: 132
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HXGEO
Material
Natural Sodium, Geotextile, HDPE Membrane
Type
Composite Geotextile
Property
Waterproof, High Tensile Strength
Width
1-6m
Length
as Your Requirement
Standard
ASTM/GB
Certificates
ISO/BV/SGS
Transport Package
Black/White Woven Fabric
Specification
3500gsm-6000gsm
Trademark
HONGXIANG
Origin
Shandong Dezhou
HS Code
68159990
Production Capacity
10000sqm/Day

Product Description

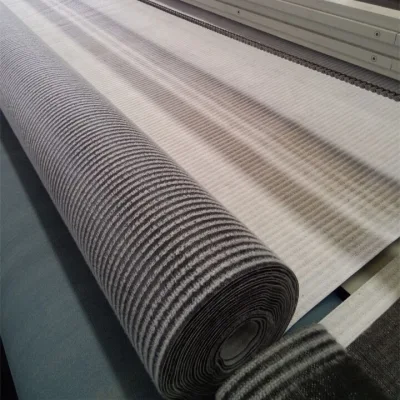

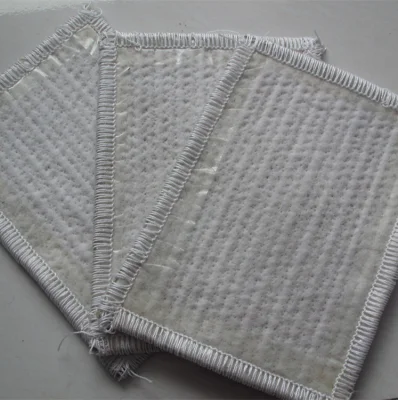

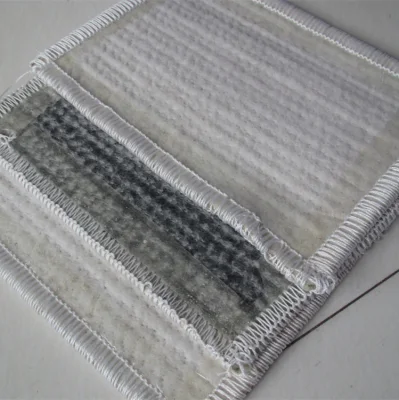

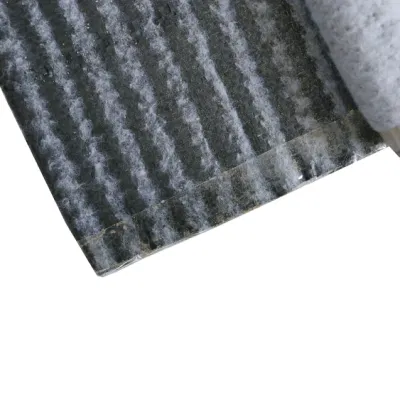

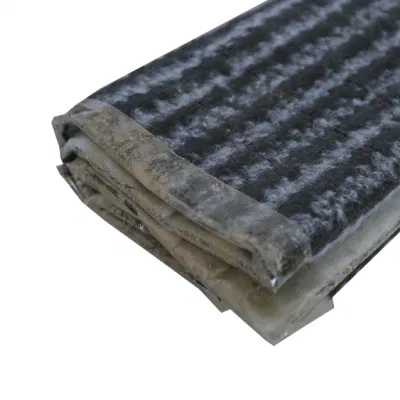

Bentonite Geosynthetic Clay Liner
Products Description:
Geosynthetic clay liners (GCLs) are high performance needle punched environmental reinforced composites which combine two durable geotextile outer layers with a uniform core of natural sodium bentonite clay to form a hydraulic barrier. Fibers from the non-woven geotextile are needle punched through the layer of bentonite and incorporated into the other geotextile (either a woven or non-woven).when hydrated under a confining load, the bentonite swells to form a low permeability clay layer with the equivalent hydraulic protection of several feet of compacted clay.
Natural Sodium Bentonite Geosynthetic Clay Liner Gcl for Environmental Protection
Natural Sodium Bentonite Geosynthetic Clay Liner Gcl for Environmental Protection

Natural Sodium Bentonite Geosynthetic Clay Liner Gcl for Environmental Protection
Natural Sodium Bentonite Geosynthetic Clay Liner Gcl for Environmental Protection



Technical Parameter:


Inspection Item
Testing Procedure Technical Index
Bentonite mass for unit area ASTMD5993 ≥5.5kg/m2
Expansion coefficient ASTMD5890 ≥ 25mL/2g
Low temperature ductility ASTMD5898 No impact at -35°C
Thickness ASTMD5892 ≥6.4mm
Tensile strength ASTMD4632 ≥540N
Peel strength of concrete face ASTMD4632 ≥3.0 KN/ m2
Peel strength ASTMD4632 ≥68N
Indicated flow ASTMD5887 ≤1 × 10-8m3/m2/sec
Hydrostatic pressure resistance ASTMD5888 ≥70
Permeability ASTMD5887 ≤5 × 10-12cm/sec
Extension rate ASTMD5896 ≥20
Puncture strength ASTMD5894 ≥635N


Features:
1. Improved leakage performance
2. Permanent waterproof performance
3. Simple construction and short time limit for a project.
4. Not influenced by air temperature.
5. A kind of green material and good to environmental protection.
6. More versatile than compacted clay
7. Increased airspace and liner efficiency

Application

·      Landfills
·      Mud Pits
·      Lagoons  ·      Canals
·      Bund Lining ·      Tank Lining
·      Fish Farm Lining  ·      Roof Lining
·      Waste Water Pits ·      Ponds and Reservoirs
·      Dams  ·      Floating Covers
·      Vertical Cutoff Walls  ·      Hydraulic Structure
·      Basement Lining ·      Drip Irrigation Ponds


Pakage & Shipping

Selling Units:Single item
Single package size:500X40X40 CM
Single gross weight:810.0 KG
Natural Sodium Bentonite Geosynthetic Clay Liner Gcl for Environmental Protection

Our Service:

Quality, delivery time and the price is our biggest advantage.
Quality: Advanced equipment and the strong professional and technical department and strict quality control system can ensure the quality.
We have different quality products for  viarious projects.
 we also can manufacture it as your specification.
 Hongxiang engineers will try their best to answer all your queries and address all your doubts.
Delivery time: 56 production lines can meet the big orders need and short the delivery time.
Price:
Purchase the big quantity raw material with cash, some of raw material made by ourselves (such as PP short fiber used for PP non woven geotextile) can low down the cost.
Our product can meet all kinds quality request, high,middle, and lower with different price.

Compony Information:
Natural Sodium Bentonite Geosynthetic Clay Liner Gcl for Environmental Protection

Hongxiang New Geo-Material Co.,Ltd in leader of the geotextile, geomembrane and GCL in China. It was set up in June,1987 and become a provincial enterprise in Oct.1997. It occupies a land of 300,000 square meters, with total asset RMB320,000,000. There are 1200employees, among them, there are 268 professional and technical personnel. We have 56 production lines mainly produce needle-punched geotextile, filament spunbond geotextile, high strength geotextile, 3-layer co-extrusion geomembrane, dripping membrane, heart treated compound geomembrane 8m in width. PE/PVC/EVA press prolong geombrane, textured geomembrane, ant-skid geomembrane, uniaxial geogrid, biaxial geogrid, steel-plastic geogrid, geocell, geomat, woven geotextile, split yarn woven geotextile and so on. Owning the word leading production line of geosynthetics. We have our own R&D department and our own test room which reach to national level.
Our annual productivity is as below: 50 million square meters of needle-punched geotextile; 55 million square meters of compound geomembrane; 9,000 metric tons of PE geomembrane; 36 million square meters of macromolecule waterproof materials; 8 million square meters of geosynthetic clay liners (GCL); 5 million square meters of single direction geogrid; 8 million square meters of double-direction geogrid; 1 million square meters of geocell; 4 million square meters of geonet; 3 million square meters of tri-dimensional geomat; 10 million square meters of woven geotextile; 9,000 metric tons of geomembrane; 300 metric tons of PP long fiber; 4,000 metric tons of PP long fiber; 6 million plastic woven bags.

 Our test lab
Natural Sodium Bentonite Geosynthetic Clay Liner Gcl for Environmental Protection
Natural Sodium Bentonite Geosynthetic Clay Liner Gcl for Environmental Protection
Our certificates
Natural Sodium Bentonite Geosynthetic Clay Liner Gcl for Environmental Protection
