Product Description
Click "Chat"/"Contact Supplier" to contact supplier

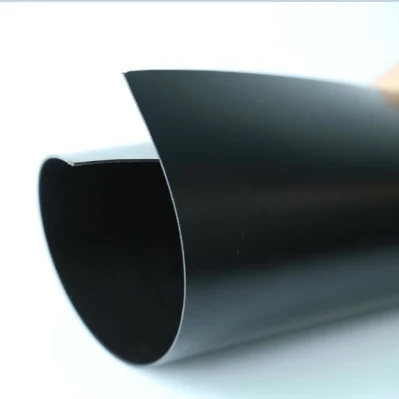

| Product name | 0.3mm, 0.5mm, . 0.75mm 1mm HDPE Virginal Raw Material Low Price Pond Liner Dam Liner Black Color Geo HDPE Geomembrane Sheet |
| Usage | Waterproof and seepage control project |
| Color | Black/white/blue/double color |
| Material | HDPE/LDPE/LLDPE/EVA |
| Type | HDPE |
| Thickness | 0.1mm-3.0m 1m-8m in roll width, the length as client's request |
| Service valid term | More than 10 years! |
| Payment term | L/C D/A D/P T/T Western Union Money Gram |
| Packing detail | Packing in woven bags. Keep it away from fire. |
| Delivery time | Normal 5-10 days after 30% prepayment |
| Property | Good flexible ,UV treated,Excellent environmental stress cracking resistance property,Low temperature resistance, corrosion resistance, aging resistance. |

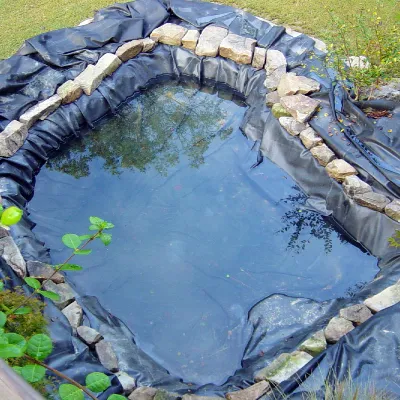

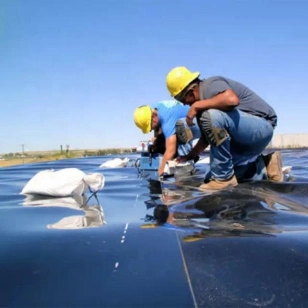

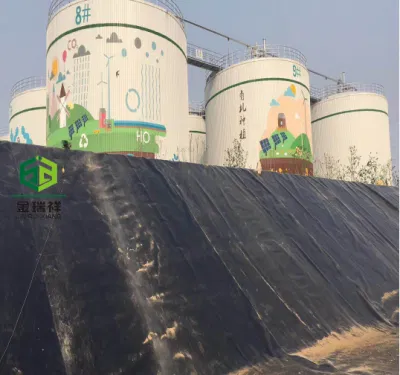

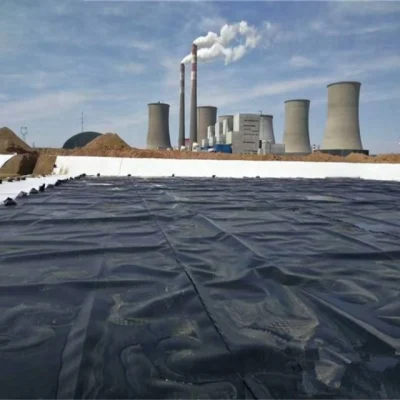

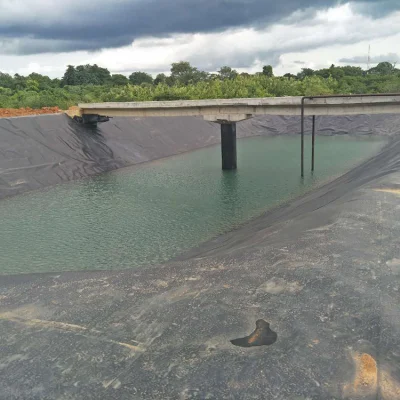

| Specific Use | Municioal environmental project, water conservancy projects,Landfill cap, mining heap leach pads,Pond liner, canal linings, tank,linings, raw water treatment reservoirs, retention ponds,Waste water treatment lagoon, secondary containment |
HDPE Sheet technical of ASTM test GM 13 standard
| Item | Test Value | ||||||||||||
| 0.2mm | 0.3mm | 0.4mm | 0.5mm | 0.75mm | 1.0mm | 1.25mm | 1.5mm | 1.8mm | 2.0mm | 2.5mm | 3.0mm | 3.5mm | |
| Minimun Density (g/cm³) | 0.94 | ||||||||||||
| Strength at yield, N/mm | 3 | 5 | 6.5 | 9 | 11 | 15 | 18 | 22 | 26 | 29 | 37 | 44 | 52 |
| Strength at break, N/mm | 5.5 | 8 | 11 | 14 | 21 | 27 | 33 | 40 | 47 | 53 | 67 | 80 | 94 |
| Elongation at yield, % | 13 | ||||||||||||
| Elongation at break, % | 730min | ||||||||||||
| Tear Resistance N | 25 | 40 | 54 | 73 | 100 | 125 | 156 | 187 | 219 | 249 | 311 | 374 | 425 |
| Puncture Resistance N | 65 | 105 | 136 | 176 | 264 | 320 | 400 | 480 | 590 | 640 | 800 | 960 | 1120 |
| Stress Crack Resistance, hrs | 400 | ||||||||||||
| Carbon Black Content, % | 2.0-3.0 | ||||||||||||
| Carbon Black Dispersion | 1 or 2 | ||||||||||||
| Standard OTI Min | 100 | ||||||||||||
| High Pressure OTI Min | 400 | ||||||||||||
| Impact Cold Crack at - 70° C | pass | ||||||||||||
| Water vapor permeability (g.cm/cm2 .s. Pa) | ≤1.0*10-13 | ||||||||||||
| Dimensional Stability (%) | ±2 | ||||||||||||
Shandong Jinruixiang Geoetextilel Material Co.,Ltd. is a high-tech enterprise which integrates development, design, production, consultation, construction, domestic and international trade of new earthwork synthetic material. The company was established since 2000 and located in No. 10 Yuanshan Road, High-Tech Development Zone, Laiwu district, Jinan City, Shandong Province, China.
The company has specialized in producing geotechnical material including HDPE geomembrane, LDPE geomembrane, LLDPE geomembrane, EVA waterproof board, composite geomembrane, polypropylene geotextile, polyester geotextile, woven geotextile more than 15 years. The products are widely used in the field such as the landfill, pond, mine, garden landscape, water conservancy, highway, railway, oil field, biogas, industry and aquaculture etc.
------------------------------------------------------------- Raw Materials -------------------------------------------------------------
---------------------------------------------------------------- Certificate ----------------------------------------------------------------
Click "Chat"/"Contact Supplier" to contact supplier
Q : Are you a factory or trading company?
A : We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane etc with ISO9001 certificate more than 15 years.
Q : Where is your factory located? How can I visit there?
A : Our facoty is located is No.10 Yuanshan Road High-tech Development Zone, Laiwu District, Jinan City China. You can take the plan to Jinan Yaoqiang International Airport, then we can pick you up.
Q : Could you send the sample before order confirmation?
A : Yes, we'd love to send a free sample to you for an evaluation if you need.
Q : How about the delivery time?
A : General within 3-7 days after received the deposit.
Q : Can you produce the product according to customers' requirements?
A : Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q : Are you the Gold and Assessed supplier on alibaba?
A : Yes. We are the gold and assessed supplier on alibaba and has got the factory report by SGS.
