High Strength Acupuncture EVA, PE Composite Geotextile Geomembrane with ASTM

Find high strength acupuncture EVA, PE composite geotextile geomembrane with ASTM at our factory. Durable and reliable solutions for all your geotechnical needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Profile
Overview

Basic Info.

Model NO.
GM13/GM17
Material
PP
Type
Composite Geomembrane
Roll Length
50m-200m
Using Life
50years
Standard
ASTM, GB
Thickness
2mm Thickness
Surface
Smooth
Weight
According to Customer Requirements
Transport Package
PP Woven Bag
Specification
width: 1m-6m
Trademark
xinxiang
Origin
Dezhou in Shandong Province
HS Code
3926909090
Production Capacity
50000m2/Day

Product Description

Product Description

High Strength Acupuncture EVA, PE Composite Geotextile Geomembrane with ASTM

Product Description
Composite geomembrane is combined with geotextile and geomembrane composite made of impervious materials, it is mainly used for seepage control, composite geomembrane is divided into a film, a film with a cloth and cloth two wide 4-6m, weight is 200-1500g/m2, the indexes of physical and mechanical tensile and tearing resistance, bursting properties such as high. To meet the civil engineering, water conservancy, municipal construction, traffic, subway, tunnel etc.. Because of its use of polymer materials, and the production process of anti-aging agent, it can be used in unconventional temperature environment.

Unit weight g/m2
400
500
600
700
800
900
1000
Remarks
Project

Thickness of Membrane mm
0.25~0.35
0.3~0.5
Breaking Strength KN/m
5
7.5
10.0
12.0
14.0
16.0
18.0
MD and CD
Elongation at Break % 30~100

CBR Mullen Burst Strength KN≥
1.1
1.5
1.9
2.2
2.5
2.8
3.0

Tear Strength KN≥
0.15
0.25
0.32
0.4
0.48
0.56
0.62
MD and CD
Peel Strength N/cm
6
Vertical Permeability Coefficient cm/s
K×10-11~-13
K=1.0-9.0

Application

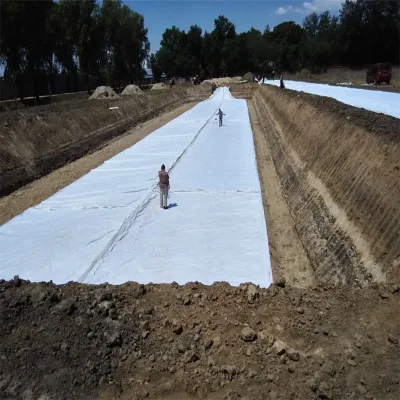

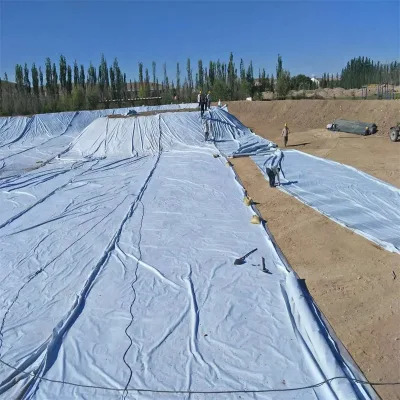

Composite geomembrane (composite geomembrane) is devided into a film, a film with a cloth and cloth two 4-6m wide, weighing 200 1500g/ square meters, the indexes of physical and mechanical tensile and tearing resistance, bursting and other high performance products with high strength, good ductility, deformation modulus, acid and alkali resistance, corrosion resistance the characteristics, aging resistance, good waterproof performance etc.. It can meet the needs of civil engineering, such as water conservancy, municipal construction, traffic, subway, tunnel, construction, seepage control, isolation, reinforcement, crack prevention and reinforcement. It is commonly used for anti-seepage treatment of dam and drainage ditch, as well as antifouling treatment of waste yard.
High Strength Acupuncture EVA, PE Composite Geotextile Geomembrane with ASTM
Company Profile

High Strength Acupuncture EVA, PE Composite Geotextile Geomembrane with ASTMDezhou Xinxiang Geotechnical Materials Co., Ltd. Was established in July 2011, covering an area of 200 acres; Registered address: Dezhou City; Main business: Focus on high-end new geosynthetic materials, carpet research and development, production, construction, sales and service.

The company has the world's leading polypropylene filament geotextile production line, domestic advanced short fiber needled geotextile production line, high-density polyethylene geomembrane production line, composite geomembrane and composite geotextile production line. Polypropylene filament geotextile adopts the latest process equipment production line developed by Oerlikon Company and OBA company. The product has the characteristics of acid resistance, alkali resistance and corrosion resistance, and solves the adverse effects of short service life and degradation of conventional products on engineering safety and environmental pollution. The world's first 6.5 meters wide product, more convenient construction, higher efficiency, and significantly reduced cost.

Innovation can produce high quality standard products in a variety of weights and thicknesses. The range of fiber denier is large and the strength is high, so that the comprehensive mechanical properties of single fiber products have been greatly improved.

Products are widely used in roads, railways, airports, ports, tunnels, rail transit, water conservancy and hydropower, , landfill, frozen areas,. It has broken the industry monopoly of international giants in the global high-end nonwovens market, replaced similar imported products, and achieved the transformation and upgrading of China's synthetic materials to durable, safe and environmentally friendly high-end materials.

The company has passed the three major system certifications of quality, environment and occupational health, including CRCC certification, two waterproof and three environmental protection qualifications.

The innovation company is the governing unit of "China Industrial Textile Industry Association", the governing unit of "China Geotechnical Engineering Association", and the member unit of "China Manufacturing Think Tank", and won the "2019 China Excellent Enterprise **", "Dezhou Innovative Fast Growth 50 Enterprises *" and other honorary titles.

According to the enterprise planning, by 2024, the production capacity of polypropylene filament geotextile production line will reach 50, 000 tons, and the annual sales output value after design and production can reach 3 billion yuan. In the future, innovation will focus on creating a comprehensive industrial pattern of high-end geosynthetic materials. Build a national leading enterprise with a high sense of social responsibility.

High Strength Acupuncture EVA, PE Composite Geotextile Geomembrane with ASTM High Strength Acupuncture EVA, PE Composite Geotextile Geomembrane with ASTM
FAQ

1.How about the delivery time?

Lead time since receipt of 30% T/T deposit payment: 1 weeks.

 2.What's are the MOQ?

We can according to your condition to set the MOQ.

And we can provide you samples for quality inspection.

3.Do you charge for the samples?

According to our company policy, the samples are free.

we only charge freight fee.we will return the freight fee If you set the order .


4.Can you produce the product according to customers' requirements ?

Sure, we are professional manufacturer.

 OEM and ODM are both accepted.


5.Can you tell me your main customers?

That's our customers' privacy, we should protect their information.

At the same time, please rest assured that your information is also safe.
