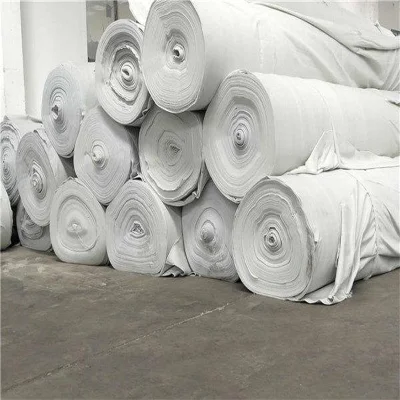

Geotextile Geotech Membrane for Port Road Construction

Discover high-quality geotextile geotech membrane for port road construction at our factory. Get durable and reliable products for your project needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Profile
Overview

Basic Info.

Model NO.
6*50
Material
PP
Kind
Non-woven
Length
30m, 100m or Customized
Standard
ASTM GM13
Width
2m-6m (as Customrized)
Weight
According to Customer Requirements
Delivery Time
Within 15day
Application
Civil Engineering
Transport Package
PP Woven Bags or as Your Request
Specification
100-800g or As your request
Trademark
xinxiang
Origin
Dezhou in Shandong Province
HS Code
5603939000
Production Capacity
50000m2/Day

Product Description

Product Description

Geotextile Road Fabric is the permeable and durable textile materials widely used to separate, filter, reinforce, protect, retain or drain soil. They are usually made from a synthetic polymer such as polypropylene, polyester, polyethylene or polyamides and processed by woven, needle punched or heat bonded methods. Geotextiles and related products are ideal materials for civil construction applications such as roads, harbors, reservoirs, canals, dams and many others retaining construction to improve soil stability, provide erosion control or aid in drainage.

Geotextile Geotech Membrane for Port Road Construction
Echnical specification of short fiber needle punched non-woven geotextiles:

According to GB/T17638-1998 Standard

No.

Item

Specification

Note

Mass per square meter G/M2

100

150

200

250

300

350

400

450

500

600

800

1

Weight Variation %

-8

-8

-8

-8

-7

-7

-7

-7

-6

-6

-6



2

Thickness mm ≥

0.9

1.3

1.7

2.1

2.4

2.7

3.0

3.3

3.6

4.1

5.0

3

Width Variation %

-0.5

4

Breaking Strength KN/m

2.5

4.5

6.5

8.0

9.5

11.0

12.5

14.0

16.0

19.0

25.0

MD and CD

5

Elongation at Break %

25 ~ 100

6

CBR Mullen Burst Strength KN≥

0.3

0.6

0.9

1.2

1.5

1.8

2.1

2.4

2.7

3.2

4.0



7

Sieve Size 090 mm

0.07 ~ 0.20



8

Vertical Permeability Coefficient cm/s

K× (10-1 ~ 10-3)

K=1.0-9.9

9

Tear Strength KN ≥

0.08

0.12

0.16

0.20

0.24

0.28

0.33

0.38

0.42

0.46

0.60

MD and CD

Needle punched geotextile after treatment method


Geotextile Geotech Membrane for Port Road Construction
Our Services

Quality assurance

  1. On a regular basis or as per your request, we entrust national testing agencies to conduct quality inspections
  2. Strictly in accordance with the ISO9001-2008 international quality system standard, we monitor and manage the whole process throughout production, quality testing, and measurement to ensure product quality
  3. For quality-related construction delay or substandard construction(except for damage or losses due to customer's responsibility or irresistible natural disasters), we have refunding, replacement, and repair services. We will respond to customers' feedbacks on quality issues within 24 hours.
Geotextile Geotech Membrane for Port Road Construction Application:

1. Reinforcement effect: Used in rock engineering such as highways, railways, airports, stone dams, slope embankments, retaining walls, and embankments, to disperse soil stress, increase soil modulus, limit soil slip, and improve stability.

2. Protection function: prevent the embankment from being washed away by wind, waves, tides, and rain, and use it for bank protection, slope protection, bottom protection, and soil erosion prevention.

3. Reverse filtration: Used as a filter layer for embankments, dams, rivers, and coastal rocks, soil slopes, and retaining walls, to prevent sand particles from passing through and allow water or air to pass freely.



Name Factory Price 150g 200g 300g 400g 500g 800g 1000g Reinforced PP/Pet Polyester Woven/Nonwoven Geotextile Price for Road Construction
Weight 100-800g or As your request
Width Within 1-6m as your request
Length 50-200m or As your request
Material PET, PP
Color Black, White, Green, Gray or as your request
Type Woven or Nonwoven;Short or Long Fiber
Package Double layers white woven geotextile; or As your request
Shipping Marks As your request or Neutral Packing
Production Standards ASTM, GB, or As your request
Geotextile Geotech Membrane for Port Road Construction

   Here are several functions for geotextile:

  • High tensile strength
  • Puncture resistance
  • Excellent water permeability and filtration
  • Good resistance to aging, puncture, extensibility and bulkiness
  • Anti corrosion
  • Anti aging
  • Good Acid and alkali resistance
  • Increases performance road life
  • Withstands tough construction loading
  • Ease of installation
Company Profile




Geotextile Geotech Membrane for Port Road ConstructionDezhou Xinxiang Geotechnical Materials Co., Ltd. Was established in July 2011, covering an area of 200 acres; Registered address: Dezhou City; Main business: Focus on high-end new geosynthetic materials, carpet research and development, production, construction, sales and service.

The company has the world's leading polypropylene filament geotextile production line, domestic advanced short fiber needled geotextile production line, high-density polyethylene geomembrane production line, composite geomembrane and composite geotextile production line. Polypropylene filament geotextile adopts the latest process equipment production line developed by Oerlikon Company and OBA company. The product has the characteristics of acid resistance, alkali resistance and corrosion resistance, and solves the adverse effects of short service life and degradation of conventional products on engineering safety and environmental pollution. The world's first 6.5 meters wide product, more convenient construction, higher efficiency, and significantly reduced cost.

Innovation can produce high quality standard products in a variety of weights and thicknesses. The range of fiber denier is large and the strength is high, so that the comprehensive mechanical properties of single fiber products have been greatly improved.

Products are widely used in roads, railways, airports, ports, tunnels, rail transit, water conservancy and hydropower, , landfill, frozen areas,. It has broken the industry monopoly of international giants in the global high-end nonwovens market, replaced similar imported products, and achieved the transformation and upgrading of China's synthetic materials to durable, safe and environmentally friendly high-end materials.

The company has passed the three major system certifications of quality, environment and occupational health, including CRCC certification, two waterproof and three environmental protection qualifications.

The innovation company is the governing unit of "China Industrial Textile Industry Association", the governing unit of "China Geotechnical Engineering Association", and the member unit of "China Manufacturing Think Tank", and won the "2019 China Excellent Enterprise **", "Dezhou Innovative Fast Growth 50 Enterprises *" and other honorary titles.

According to the enterprise planning, by 2024, the production capacity of polypropylene filament geotextile production line will reach 50, 000 tons, and the annual sales output value after design and production can reach 3 billion yuan. In the future, innovation will focus on creating a comprehensive industrial pattern of high-end geosynthetic materials. Build a national leading enterprise with a high sense of social responsibility.
Geotextile Geotech Membrane for Port Road Construction
Q1: Where is your company located?
A:Our company is located in Dezhou City, Shandong Province, China.
 HDPE Geomembrane For Pit Liner

Q2: Can you provide a sample for us?
A:Yes,We can send free samples,but customer need to pay the freight.
 HDPE Geomembrane For Pit Liner

Q3: What is your minimum order quantity?
A:The minimum order quantity is 5000 ,but it is negotiable.
 HDPE Geomembrane For Pit Liner

Q4:What is your payment terms?
A: T/T,Western Union,Paypal,L/C...
 HDPE Geomembrane For Pit Liner

Q5:What is your delivery time?
A:Production time usually costs 2-20 days based on the order.
