Gcl Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill Project

Get GCL Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill from our factory. High quality, cost-effective solution for your project.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Application
  • Feature
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Ceiling Tile Type
Bentonite
Surface Treatment
Needle Punched
Function
Waterproof
Certification
ISO
Color
Grey
Usage
Outdoor, Indoor
Classification
Bentonite Geosynthetic Clay Liner
Application
Electrical Engineering, Roads & Railways & Airpor
Length
30m
Mass Per Unit
3500g ~ 9000g
Struction
PP/Pet Fabric + Bentonite + PP Woven Fabric
Transport Package
Woven Bag
Specification
6m width
Trademark
PENNLINER
Origin
China
HS Code
2508100090
Production Capacity
100000/Year

Product Description




Product Description

Gcl Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill Project

PENNLINER is a kind of geosynthetics used in artificial lake water, landfill, underground garage, roof garden, pool, oil depot and chemical yard, solving the problems of sealing, isolation and leakage prevention, and has good effect and strong destructive resistance.

There are two kinds PENNLINER by category, NP needling type and OF film covered type.



Product Parameters

Property National standard Enterprise Standard Inspection standards
 JG/T 193-2006
Geosynthetic Clay Expansionindex ≥24 ml/2g ≥25ml/2g ASTM D5890
Mass Per Unit Area(g/m2) ≥4800 g/m2 ≥4800 gm2 ASTM D5993
Tensile Strength ≥6KN/m ≥8KN/m ASTM 4632
Maximum load elongation ≥10% ≥10% ASTM 4632
Permeability ≤5×10-9 ≤5×10-9 ASTM D5084
Moisture content ≤15% ≤15% ASTM D4643
Peel strength ≥40N ≥65N ASTM D4632
Hydrostatic pressure 0.4Mp 0.4~0.6Mp ASTM D5891

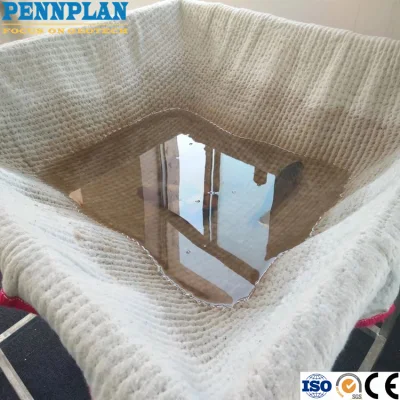

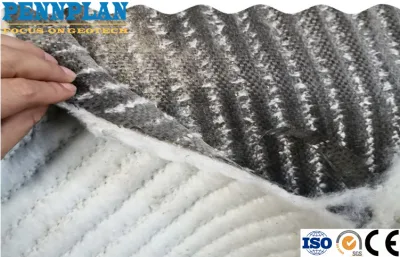

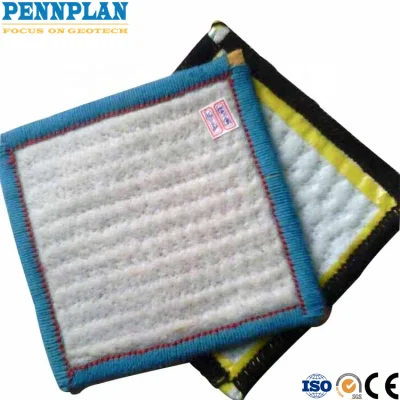

Detailed Photos

Gcl Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill Project
Gcl Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill Project



Gcl Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill Project
Gcl Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill Project



Application

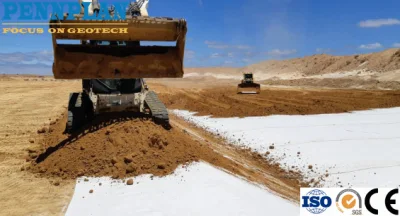

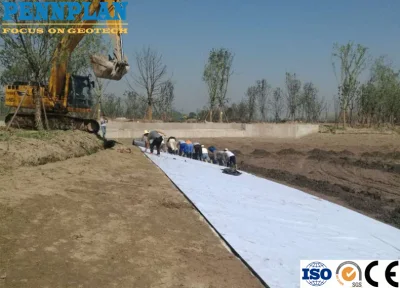

1. Municipal projects, subway, railway, underground, and roof waterproofing.
2. Landfill, waste,water treatment, industrial waste ponds.
3. Waterproofing and reinforcement in water conservancy, rivers, lakes and dams.
4. Artificial lake, golf course and shrimp ponds.
5. Petrifaction, mineral waterproofing.



Gcl Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill Project
Gcl Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill Project
Gcl Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill Project



Feature

1. Compactness
2. Permanent waterproof performance

3. Easy construction
4. Not affected by temperature
5. Integration of waterproof materials and objects
6. Green and environmentally friendly

Packaging & Shipping



Gcl Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill Project
Gcl Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill Project




Gcl Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill Project
Gcl Impermeable Bentonite 4500GSM 4800GSM Geosynthetics Clay Liner for Landfill Project


Company Profile

PENNPLAN is a leading and professional manufacturer of engineering materials.

Though it is a very young & reorganized company, still inherited rich management experience from its predecessors well. As we know, how to produce and supply qualified products, is only a smaller part we can do for our clients; So how to supply the perfect construction solution and standard instruction manual will take a more and more important role in the future.

Though it owns a very young marketing team, they are energetic, ambitious, aggressive, and good at learning more professional knowledge from different roles, and we firmly believe that the clients are the best teachers, the competitors are the best motivators.

Now, PENNPLAN is fully devoted to engineering industries, the development road of Tech-Service Oriented Enterprises will keep in the whole life.

We′ Re committed to being the partner and friend that can be trusted by customers. The more important is we can supply installation guides by our experienced technicians, which can make projects faster and better.

In the future, PENNPLAN Co., Ltd will be guided by "Customer Satisfaction" and "Credit, Quality and Service" to create our own brand and offer the best materials and service for customers.

FAQ



1,  Ask: What is the PAYMENT METHODS?
Re: T/T ,LC,Others

2,  Ask: What is the LEAD TIME?
Re:    Within 15 working days

3,Ask: What's your MOQ? Can I order small quantity for testing at first order?
Re: The MOQ is 1200 SQM,For new client, we accept small order for building mutual trust and long-term business relationship

4, Ask:How do you ensure the quality
Re: We are working with there QC processes to guarantee the quality :1.For raw materials;2.Onsite inspection during production;3,Final QC test for each batch of finished products
