Overview

Basic Info.

Model NO.
TGLG
Application
Retaining Wall, Steep Slop, Dam, Road Base
Viscose
Without Viscose
Function
Anti-slip, Reinforcement
Classification
Plastic Geogrid
Material
Plastic
Raw Material
PP HDPE
Tensile Strength
35-260kn/M
Elongation
10%
Feature
High Tensile
Certificate
CE/ISO9001/ISO14001/BV/ASTM
Roll Length
Cutomized
Original Equipment Manufacturer
Acceptable
Transport Package
Woven Geotextile Packaging or Customized
Specification
Plastic PP HDPE uniaxial
Trademark
Road
Origin
Taian City, Shandong Province
HS Code
3926909090
Production Capacity
20000square Meter/Day

Product Description



Product Description

         Factory Price of PP/HDPE Uniaxial Geogrids and PP Biaxial Geogrid
Geogrids are geosynthetic material made from polymers such as polypropylene,polyethylene or polyester and are used widely in Civil Engineering applications to provide tensile reinforcement of soil.They are in the form of open grids so that soil can strike through the apertures and the two materials interlock together to give composite behaviour. They are used in the construction of retaining walls, steep slopes, roadway bases and foundations.


Fiberglass/Polyester Biaxial Geogrid/PP Polyester Uniaxial Geogrid/Plastic/Mining/Steel-Plastic Geogrid
Fiberglass/Polyester Biaxial Geogrid/PP Polyester Uniaxial Geogrid/Plastic/Mining/Steel-Plastic Geogrid

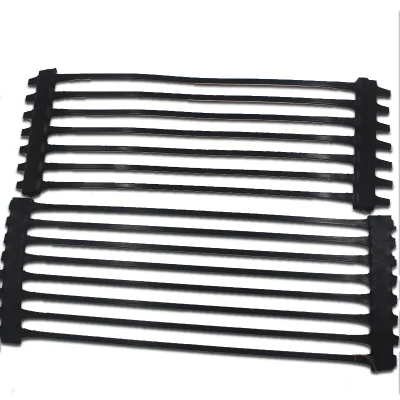

                          PP Uniaxial Geogrid 50kN/m                                             PP Uniaxial Geogrid 110kN/m



Fiberglass/Polyester Biaxial Geogrid/PP Polyester Uniaxial Geogrid/Plastic/Mining/Steel-Plastic Geogrid
Fiberglass/Polyester Biaxial Geogrid/PP Polyester Uniaxial Geogrid/Plastic/Mining/Steel-Plastic Geogrid

                               HDPE Uniaxial Geogrid 150kN/m                                                             HDPE Uniaxial Geogrid 160kN/m


Product Parameters

PP Uniaxial geogrid Product Properties

Item
TGDG35
TGDG50
TGDG80
TGDG 110
TGDG 120
TGDG 150
TGDG 160
TGDG 200
TGDG260
Width(m)
1 or 1.1 or 2.5 or 3
Tensile strength≥(KN/M)
35
50
80
110
120
150
160
200
260
Elongation≤(%)
10
tensile strength at 2% strain≥(KN/M)
10
12
26
32
36
42
45
56
94
tensile strength at 5% strain≥(KN/M)
22
28
48
64
72
84
90
112
185

HDPE Uniaxial geogrid Product Properties

Item
TGDG50
TGDG65
TGDG80
TGDG90
TGDG100
TGDG110
TGDG130
TGDG150
TGDG220
Width(m)
1 or 1.1 or 2.5 or 3
Tensile strength≥(KN/M)
50
65
80
90
100
110
130
150
220
Elongation≤(%)
11.5
tensile strength at 2% strain≥(KN/M)
12
16
21
24
26
29
38
41
64
tensile strength at 5% strain≥(KN/M)
23
31
40
45
50
55
75.5
81
127
Application

Uniaxial geogrid is mainly applied in highway, railway, slope protecting projects, retaining wall, dam to strengthen land loading capacity and extend its service life. Features in reducing area, project cost and maintainance cost, convenient to construct.

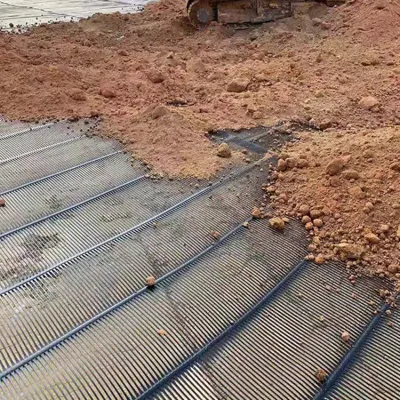

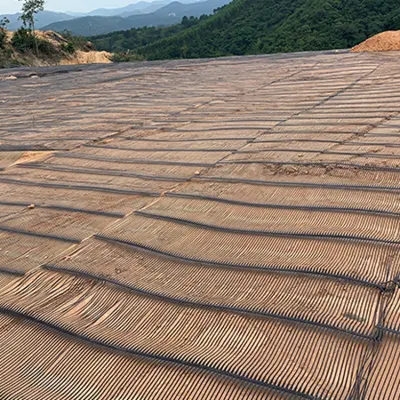

Unidirectional geogrids are used to strengthen weak foundations

geogrids can quickly increase the bearing capacity of foundations, control the development of settlement, and effectively distribute loads to wider subbases by confining the road base, thereby reducing The thickness of the base layer reduces the project cost, shortens the construction period and prolongs the service life.
Fiberglass/Polyester Biaxial Geogrid/PP Polyester Uniaxial Geogrid/Plastic/Mining/Steel-Plastic Geogrid
Fiberglass/Polyester Biaxial Geogrid/PP Polyester Uniaxial Geogrid/Plastic/Mining/Steel-Plastic Geogrid
Unidirectional geogrid for cement pavement

Geogrid is laid on the bottom of the cement pavement, which can reduce the rut depth, prolong the anti-fatigue life of the pavement, and reduce the thickness of the cement pavement to save costs.

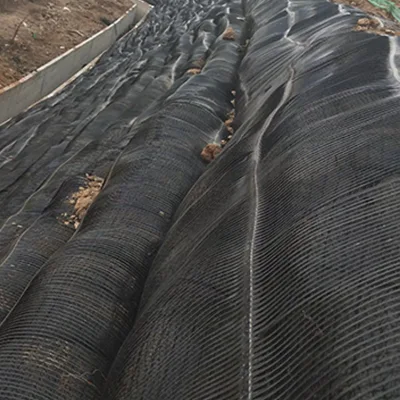

Uniaxial plastic geogrid used to strengthen river and sea embankment

It can be made into a gabion, and then used together with a grid to prevent the dam from being washed by sea water and cause collapse. The gabion is permeable, can slow down the impact of waves, prolong the life of the dam, save manpower and material resources, and shorten the construction period.
Fiberglass/Polyester Biaxial Geogrid/PP Polyester Uniaxial Geogrid/Plastic/Mining/Steel-Plastic Geogrid
Fiberglass/Polyester Biaxial Geogrid/PP Polyester Uniaxial Geogrid/Plastic/Mining/Steel-Plastic Geogrid
Special Purposes of Unidirectional Geogrids

Anti-low temperature geogrid, after repeated cooling and heating cycles at -45°C to 50°C for 200 times, all performance indicators meet the requirements, and have passed the test of the Qinghai-Tibet Railway. It is suitable for less-frozen and rich-frozen soil in the north , High ice content permafrost bad geology.
