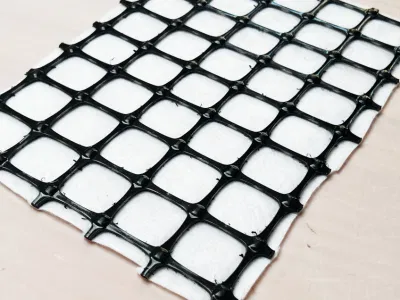

Extruded PP Biaxial Geogrid Heat Bonded to Nonwoven Geotextile

StrongGrid HeatBonded Geocomposite - Factory-made product for durable soil stabilization and reinforcement applications. Made with high-quality materials.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Features
  • Specifications
  • Application
Overview

Basic Info.

Model NO.
10kn to 60kn
Material
Geogrid and Geotextile
Width
1-6m
Length
50-100m
Geogrid Type
PP Biaxial Geogrid
Geotextile Type
Nonwoven Geotextile
Tensile Strength
20-50kn
Transport Package
Rolled by PE Film
Specification
30/30KN+100gsm, 40/40KN+100gsm, etc
Trademark
Lianyi Geogrid
Origin
China
HS Code
3926909090
Production Capacity
50000m2 Per Day

Product Description

Extruded PP Biaxial Geogrid Heat Bonded to Nonwoven Geotextile
Extruded PP Biaxial Geogrid Heat Bonded to Nonwoven Geotextile
Extruded PP Biaxial Geogrid Heat Bonded to Nonwoven Geotextile









Product Description
Extruded PP Biaxial Geogrid Heat Bonded to Nonwoven Geotextile
Composite geogrids are used for stabilize soils where a both reinforcing and separation between a granular base and very fine soil is required.
The geocomposite binds closely to the soil being reinforced, separates different soil types and provides an effective filter
action.
Features
Composite geogrids are made by bonding a nonwoven geotextile to PP biaxial geogrid.
Composite geogrids have both a high tensile strength and modulus of elasticity, resist damage during installation, and weathering by the atmosphere.
Extruded PP Biaxial Geogrid Heat Bonded to Nonwoven Geotextile
Specifications
Index Properties PPCG2020 PPCG3030 PPCG4040
Polymer PP PP PP
Minimum Carbon Black % 2 2 2
Tensile Strength @ 2% Strain KN/m 7 10.5 14
Tensile Strength @ 5% Strain  KN/m 14 21 28
Ultimate Tensile Strength MD KN/m 20 30 40
Strain @ Ultimate Strength % 13
Geotextile physical properties Long filament PET needle punched nonwoven geotextile
Mass per unit area g/m2 100-200g/m2
Application

Extruded PP Biaxial Geogrid Heat Bonded to Nonwoven Geotextile

1,It can widely apply in the water conservation, the municipal administration,

2, The building,the transportation, the subway,the tunnel,

3, The environmental protection and so on.





Extruded PP Biaxial Geogrid Heat Bonded to Nonwoven Geotextile
Extruded PP Biaxial Geogrid Heat Bonded to Nonwoven Geotextile
Extruded PP Biaxial Geogrid Heat Bonded to Nonwoven Geotextile
Extruded PP Biaxial Geogrid Heat Bonded to Nonwoven Geotextile
Extruded PP Biaxial Geogrid Heat Bonded to Nonwoven Geotextile
Extruded PP Biaxial Geogrid Heat Bonded to Nonwoven Geotextile
