Basic Info.
Model NO.
200g to 3000g
Roll Length
20-50m
Roll Width
1-2.5m
Transport Package
Woven Bags or PE Films
Specification
750-1800g/m2
Origin
China
HS Code
3926909090
Production Capacity
1000000 Sqm Per Day
Product Description

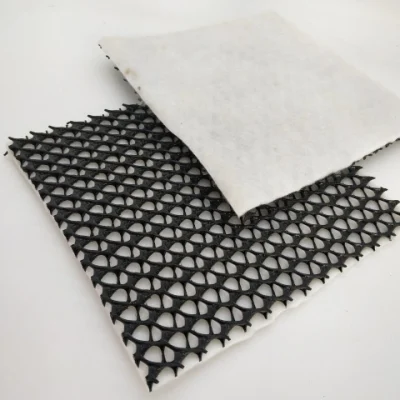

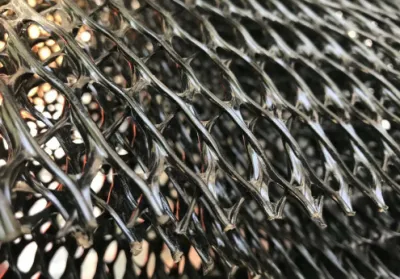

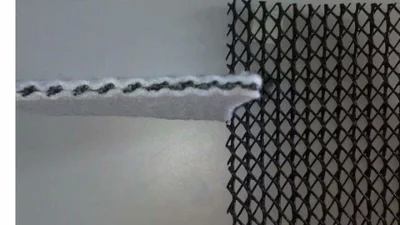

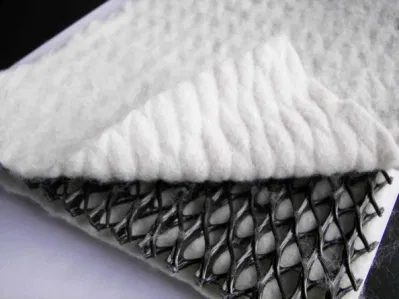

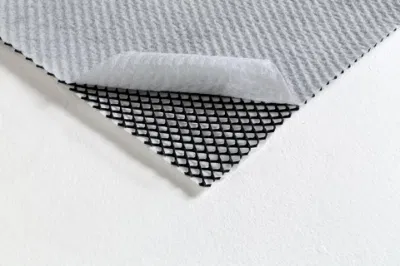

Drainage Composite Geonet
Intrpoduction
Drainage Composite Geonet is a new type of dewatering geotechnical material, which the raw material is HDPE and manufactured via particular extrusion forming technique. It has three levels, the inner fillet has strong rigidity, arrange longitudinal to form dewatering channel, the upper and bottom fillet form support to avoid geotextile inserting into dewatering channel, that means even if under high load it can also keep good dewatering property. It is the best dewatering material currently who has below function:" filter -- dewatering -- ventilate -- protect".
2.Roadbed and road drainage;
3.Railway drainage, tunnel drainage, underground structure drainage.
4.The retaining back wall drainage,
5.Gardens and sports grounds drainage.
Intrpoduction
Drainage Composite Geonet is a new type of dewatering geotechnical material, which the raw material is HDPE and manufactured via particular extrusion forming technique. It has three levels, the inner fillet has strong rigidity, arrange longitudinal to form dewatering channel, the upper and bottom fillet form support to avoid geotextile inserting into dewatering channel, that means even if under high load it can also keep good dewatering property. It is the best dewatering material currently who has below function:" filter -- dewatering -- ventilate -- protect".
Performance
1.Excellent drainage function, can bear long time high press load.
2.High tensile and shear strength.
3.Reduce the rete geotextile embedding into the core of geonet, can protect long time stable water conductivity
4.tri-dimension composite geonet for drainage can bear more than 20Kpa compression load.
5.Its anti-compression capacity is much larger than common geonet for drainage
| Item | Unit | Spec./ Standard value | ||||
| 1200g/m2 | 1400g/2 | 1600g/m2 | 1800g/m2 | 2000g/m2 | ||
| Unit weight of compond | g/m | ≥1200 | ≥1400 | ≥1600 | ≥1800 | ≥2000 |
| Thickness of compond | mm | ≥6.0 | ≥7.0 | ≥8.0 | ≥9.0 | ≥10.0 |
| Longitudinal tensile strength of compond productiong | KN/m | ≥16.0 | ||||
| water diversion ration of compond production | m2/s | ≥1.2×10-4 | ||||
| peel strength of network core and geotextile | KN/m | ≥0.3 | ||||
| Thickness of network core | mm | ≥5.0 | ≥5.0 | ≥6.0 | ≥7.0 | ≥8.0 |
| Tensile strength of network core | KN/m | ≥13.0 | ≥15.0 | ≥15.0 | ≥15.0 | ≥15.0 |
| Unit weight of geotextile | g/m2 | ≥200 | ||||
| Seepage coefficient of geotextile | cm/s | ≥0.3 | ||||
| Width | m | 2.1 | ||||
| Length of one roll | m | 30 | ||||
Application:
1.Landfill drainage;2.Roadbed and road drainage;
3.Railway drainage, tunnel drainage, underground structure drainage.
4.The retaining back wall drainage,
5.Gardens and sports grounds drainage.
