PRODUCTS DETAILS

Basic Info.

Model NO.
ASTM
Material
PP/Pet
Kind
Non-woven
Width
1-6m
Length
Customized
Brand
Inno
Materials
PP/Pet
Fiber
Short Fiber and Long Fiber/Long Fiber
Transport Package
Woven Geotextile +Paper Rolls
Specification
Customized
Trademark
INNO
Origin
China
HS Code
5602100000
Production Capacity
30000sqm/Per Day Depends on The Specification

Product Description

Customized Non-Woven Construction Material Non Woven Fabric Manufacture Geotextile with Good Price

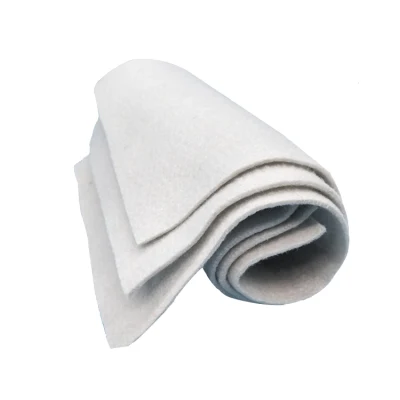

POLYPROPYLENE SHORT FIBER NEEDLE PUNCHED GEOTEXTILE
  • Product Introduction:
Using ultra-high-strength polypropylene staple fiber or ES fiber as the main raw material, it is produced by non-woven technology and has the functions of isolation, reinforcement, protection, filtration, drainage, and buffering.
Product specifications: PP100~PP1200, width 2m~6m., length according to user requirements.
  • Features:
The physical and mechanical properties are 2 to 3 times higher than that of conventional products. The proportion of products with the same gram weight is low; the acid and alkali resistance is excellent, the hot melt adhesion is good, and the wear resistance is strong. It is more suitable for CRTS/ slab ballastless track sliding layer system, which can reduce the interaction between the track system and the bridge surface.
  • Applications:
Polypropylene needle-punched non-woven geotextile is mainly used for the sliding layer between CRTS slab ballastless track and beam surface of passenger dedicated railway, and the isolation layer between CRTS slab ballastless track and friction. It can also be widely used Hydropower, highways, railways, ports, airports, sports venues, tunnels, beaches, reclamation, environmental protection and other fields play the role of isolation, filtration, drainage, reinforcement, protection, etc.
  • Technical Data:
Specification unit 100g 200g 300g 400g 500g 600g 700g
unit weight variation % ± 6
Grab strength MD
N
≥450 ≥900 ≥1200 ≥1600 ≥2000 ≥2400 ≥3200
TD ≥450 ≥900 ≥1200 ≥1600 ≥2000 ≥2400 ≥3200

Trapezoidal tear strength
MD
N

≥170

≥350

≥420

≥500

≥580

≥660

≥900

TD
≥170 ≥350 ≥420 ≥500 ≥580 ≥660 ≥900
CBR mullen brust strength kN ≥1.3 ≥2.5 ≥3.5 ≥4.3 ≥5.5 ≥6.5 ≥9.0
breaking strength  MD kN/m ≥5.0 ≥11 ≥16 ≥22 ≥28 ≥35 ≥48
TD ≥5.0 ≥11 ≥16 ≥22 ≥28 ≥35 ≥48
Elongation at break MD % 40~70 50~80 70±20
TD
puncture resistance N ≥210 ≥430 ≥650 ≥900 ≥1200 ≥1500 ≥2500

Customized Non-Woven Construction Material Non Woven Fabric Manufacture Geotextile with Good Price
Customized Non-Woven Construction Material Non Woven Fabric Manufacture Geotextile with Good Price Customized Non-Woven Construction Material Non Woven Fabric Manufacture Geotextile with Good Price

Geotextile Application
Customized Non-Woven Construction Material Non Woven Fabric Manufacture Geotextile with Good Price


Customized Non-Woven Construction Material Non Woven Fabric Manufacture Geotextile with Good Price

1.S
eparation

The separation function of geotextile is majorly used in the construction of roads. Geotextile prevents the intermixing of two adjacent soils. For example, by separating fine subgrade soil from the aggregates of the base course, the geotextile preserves the drainage and the strength characteristics of the aggregate material.
Some of the applicable areas are:
  • Between subgrade and stone base in unpaved and paved roads and airfields.
  • Between subgrade in railroads.
  • Between landfills and stone base courses.
  • Between geomembranes and sand drainage layers.
2.Filtration
The equilibrium of geotextile-to-soil system that allows for adequate liquid flow with limited soil loss across the plane of the geotextile.
Porosity and permeability are the  major properties of geotextiles which involve infiltration action.
A common application illustrating the filtration function is the use of a geotextile in a pavement edge drain, as shown in the figure above.
3.Reinforcement
Introduction of geotextile in the soil increases the tensile strength of the soil the same amount steel does in concrete. The strength gain in soil due to the introduction of geotextile is by the following 3 mechanisms :
  • Lateral restraint through interfacial friction between geotextile and soil/aggregate.
  • Forcing the potential bearing surface failure plane to develop an alternate higher shear strength surface.
  • Membrane type of support of the wheel loads.
4. Sealing
A layer of non-woven geotextile is impregnated in between existing and new asphalt layers. The geotextile absorbs asphalt to become a waterproofing membrane minimising vertical flow of water into the pavement structure.


Application
1. Road Work
Geotextiles are widely used in the construction of the road. It reinforces the soil by adding tensile strength to it. It is used as a rapid de-watering layer in the roadbed, the geotextiles need to preserve its permeability without losing its separating functions.



2. Railway Works

The woven fabrics or the non-woven ones are used to separate the soil from the sub-soil without impeding the groundwater circulation where the ground is unstable. Enveloping individual layers with fabric prevents the material from wandering off sideways due to shocks and vibrations from running trains.



3. Agriculture

It is used for mud control. For the improvement of muddy paths and trails those used by cattle or light traffic, nonwoven fabrics are used and are folded by overlapping to include the pipe or a mass of grit.

4. Drainage

The use of geotextiles to filter the soil and a more or less single size granular material to transport water is increasingly seen as a technically and commercially viable alternative to the conventional systems. Geotextiles perform the filtering mechanism for drainages in earth dams, in roads and highways, in reservoirs, behind retaining walls, deep drainage trenches, and agriculture.



5. River, Canals and Coastal Works

Geotextiles protect river banks from erosion due to currents or lapping. When used in conjunction with natural or artificial enrockments, they act as a filter.



Customized Non-Woven Construction Material Non Woven Fabric Manufacture Geotextile with Good Price

Customized Non-Woven Construction Material Non Woven Fabric Manufacture Geotextile with Good Price Geotextile Installations Instructions

How to install  geotextile fabric

Let us show you how easy the installation is and provide a few useful tips along the way. In our example,

Step 1 - Prep the road surface

First, you will need to excavate the roadway to the desired elevation. Then fully compact your subgrade, making sure you have removed all air and tightened the soil completely.

Step 2 - Unroll the reinforcement geotextile fabric

Roll the geotextile fabric on the compacted subgrade, making sure it's free of wrinkles and folds. Overlap your fabric as directed by the engineer. Cherokee can pre-sew the fabric for you if a stitch seam is required. Contact your Cherokee representative to get pricing on factory seamed rolls in a wider widths.

Step 3 - Sew the geotextile fabric

This job required the fabric to be stitched on the job site. The fabric needs to be seamed with a dual thread lock stitch to prevent it from unthreading. We have equipment available for purchase or rental to do the stitching on the job. At the engineers discretion you can choose a prayer seam, j-seam, or butterfly seam. In this example we will be using a j-seam. We recommend doing two stitches on each seam to prevent any failure during installation.

Step 4 - Apply Aggregate

Place your aggregate to the specified thickness, ensuring that no equipment drives directly on the engineered fill. Make sure the fill has reached full compaction before the final step.

Step 5 - Lay Asphalt

Now that you have placed your subbase you are ready for your pavement layer (or layers depending on the project type).



Packages and Shipment
Nonwoven Geotextile is packed in the woven bags or follow your demand.
Keep it away from moisture and fire!!!

Customized Non-Woven Construction Material Non Woven Fabric Manufacture Geotextile with Good Price




Company Information
Name:
Shandong innovative material technology  Co.,Ltd
Add:
NO.6399 East tianqu road dezhou city shandong province
Enterprise Culture:
Takes R&D as center, innovation as driving force, market as orientation, and talents as foundation.
Honor and certificate:
Shandong Famous Brand
Certificate of Inspection of Quality:CRCC Certification
Enterprise of Abiding by Strictly Contract and Being Trustworthy
ISO9001:2008 Quality Management System Certification; National Industrial Production License.
