Customized CRGO Cold Rolled Grain Non Oriented Electrical Steel Coil Silicon Steel Supplier

Get top-quality Customized CRGO Cold Rolled Grain Non Oriented Electrical Steel Coil from our factory. We are the leading silicon steel supplier.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Our Advantages
  • Product Parameters
  • Company Profile
  • Product Description
  • Packaging & Shipping
  • Certifications
  • Application
  • FAQ
Overview

Basic Info.

Model NO.
Non-Oriented Electrical Steel
Nominal Thickness(mm)
0.20 - 0.65
Max. Total Loss P1.5/50 W/Kg
2.1 - 35
Min. Magnetic Polarization J5000 T
1.6 - 1.74
Min. Lamination Coefficient(%)
0.93 - 0.97
Min. Number of Bending
2 - 10
Density Kg/Dm 3
7.60 - 7.85
Application
Motors, Compressor, Household Appliances, Robots
MOQ
1 Tons
Date of Delivery
15 - 45 Days
Capacity
10 Million Tons / Year
Price Term
Fob, EXW, CFR, CIF, etc.
Payment Term
LC, T/T, D/P, Paypal, Western Union, etc.
Sample
Free Sample
Transport Package
Standard Export Packing / Customized
Specification
Customizable
Trademark
HWHG
Origin
China
HS Code
7225110000
Production Capacity
10 Million Tons / Year

Product Description

Our Advantages

1. Seven production bases in China, equipping with strict quality inspection and comprehensive after-sales service and offerring professional solutions in time;
2. The world's first breakthrough in stainless steel five-foot wide five-continuous rolling technology;
3. The first stainless steel whole-roll water plating black titanium and whole-roll vacuum plating color coil;
4. Annual output value of up to 10 million tons, can meet the product customization of more than 60 countries;
5. Grade: 200 Series / 300 Series / 400 Series;
6. Standard: QB / GB / ASTM / JIS / EN / BIS

Cold rolled electrical steel is an essential soft magnetic material used as the core material for making various electrical appliances such as motors and transformers. Electrical steel is the most commonly used soft magnetic material and is widely used in the electrical power, electronics and military industries. On one hand, it is closely related to people' production, life and other daily activities, on the other hand, it has also made great progress in adapting to the progress of the times.

Cold rolled Non-Oriented electrical steel (NOES) is a soft magnetic material produced using a cold rolling process and it is designed to have uniform magnetic properties in all directions. High-grade NOES has the main features of low core loss, good thermal stability, high electrical resistance and etc. Commonly used in the construction large motors, generators, small and medium distribution transformers, magnetic amplifiers, measuring instrument transformers, electromagnetic switches and etc.

Cold rolled grain-oriented electrical steel (GOES) is a soft magnetic material that produced using a cold rolling process. Its grain orientation inside the steel plate is consistent with the longitudinal direction (rolling direction) of the strip. The ideal micro-structure of GOES is {110} <001>, meaning that magnetic properties should be different in each direction, with the best longitudinal performance. GOES is mainly used for production of various transformers and the transformers core is made of a stack of GOES lamination.

Product Parameters

Magnetic Properties and Technical Characteristics of Common Type Non-Oriented Electrical Steel
Type Grade Nominal Thickness(mm) Max. Total Loss P1.5/50 W/kg Min. Magnetic Polarization J5000 T Min. Lamination Coefficient(%) Min. Number of Bending Density kg/dm 3
Common Type H35W230 0.35 2.10 1.62 0.95 2 7.60
H35W250 2.28 1.64 2 7.60
H35W270 2.45 1.64 2 7.60
H35W300 2.65 1.64 2 7.65
H35W360 3.20 1.65 3 7.65
H35W440 3.40 1.67 3 7.70
H50W250 0.50 2.30 1.64 0.97 2 7.60
H50W270 2.48 1.64 2 7.60
H50W290 2.65 1.64 2 7.60
H50W310 2.85 1.64 2 7.60
H50W350 3.00 1.65 2 7.65
H50W400 3.20 1.65 5 7.65
H50W470 3.30 1.70 10 7.70
H50W600 4.20 1.68 10 7.75
H50W700 4.70 1.70 10 7.80
H50W800 5.50 1.71 10 7.80
H50W1000 6.00 1.74 10 7.85
H50W1300 7.00 1.74 10 7.85
H65W310 0.65 3.05 1.64 0.97 2 7.60
H65W350 3.45 1.65 2 7.60
H65W400 3.95 1.66 2 7.65
H65W470 4.60 1.67 5 7.65
H65W530 5.20 1.68 10 7.70
H65W600 5.90 1.68 10 7.75
H65W700 6.90 1.69 10 7.75
H65W800 7.90 1.71 10 7.80
H65W1000 9.90 1.71 10 7.80
H65W1300 12.90 1.72 10 7.85

Magnetic Properties and Technical Characteristics of High Efficiency Non-Oriented Electrical Steel
Type Grade Nominal Thickness(mm) Max. Total Loss P1.5/50 W/kg Min. Magnetic Polarization J5000 T Min. Lamination Coefficient(%) Min. Number of Bending Density kg/dm 3
High Efficiency H35WG230 0.35 2.28 1.66 0.95 2 7.65
H35WG250 2.45 1.67 2 7.65
H35WG270 2.65 1.68 5 7.70
H35WG300 2.80 1.69 5 7.70
H50WG350 0.50 2.90 1.68 0.97 5 7.70
H50WG470 3.00 1.71 5 7.70
H50WG600 3.50 1.72 10 7.75
H65WG600 0.65 4.50 1.72 10 7.75

Magnetic Properties and Technical Characteristics of Non-Oriented Electrical Steel for New Energy Vehicles
Type Grade Nominal Thickness(mm) Max. Total Loss P1.5/50 W/kg Min. Magnetic Polarization J5000 T Min. Lamination Coefficient(%) Min. Number of Bending Density kg/dm 3
Common Type H20AV1200 0.20 12 1.61 0.93 2 7.60
H20AV1300 13 1.63 0.93 2 7.65
H25AV1300 0.25 13 1.62 0.94 2 7.60
H27AV1400 0.27 14 1.62 0.94 2 7.60
H30AV1500 0.30 15 1.63 0.94 2 7.60
H35AV1700 0.35 17 1.64 0.95 2 7.60
H35AV1800 18 1.64 0.95 2 7.60
H35AV1900 19 1.65 0.95 2 7.65
H35AV2000 20 1.65 0.95 3 7.65
H35AV2100 21 1.66 0.95 3 7.65
High Magnetic Induction H20AVG1200 0.20 12 1.68 0.93 2 7.65
H25AVG1300 0.25 13 1.68 0.94 2 7.65
H27AVG1400 0.27 14 1.68 0.94 2 7.65
H30AVG1500 0.30 15 1.68 0.94 2 7.65
H35AVG1700 0.35 17 1.68 0.95 2 7.65
H35AVG1900 19 1.68 0.95 3 7.65
High Efficiency H20AVX1200 0.20 12 1.64 0.93 2 7.65
H20AVX1300 13 1.65 0.93 2 7.65
H27AVX1400 0.27 14 1.65 0.94 2 7.65
H30AVX1500 0.30 15 1.66 0.94 2 7.65
H35AVX1700 0.35 17 1.66 0.95 2 7.65
High Strength H35AVQ500 0.35 25 1.64 0.95 2 7.60
H35AVQ550 32 1.63 0.95 2 7.60
H35AVQ600 35 1.6 0.95 2 7.60
High Efficiency & Strength H25AVM1300 0.25 13 1.65 0.94 2 7.60
H27AVM1400 0.27 14 1.65 0.94 2 7.60
H30AVM1500 0.30 15 1.65 0.94 2 7.60

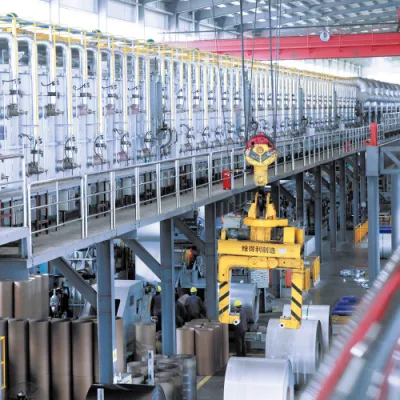

Company Profile

Customized CRGO Cold Rolled Grain Non Oriented Electrical Steel Coil Silicon Steel SupplierCustomized CRGO Cold Rolled Grain Non Oriented Electrical Steel Coil Silicon Steel SupplierCustomized CRGO Cold Rolled Grain Non Oriented Electrical Steel Coil Silicon Steel Supplier

Product Description

Customized CRGO Cold Rolled Grain Non Oriented Electrical Steel Coil Silicon Steel Supplier

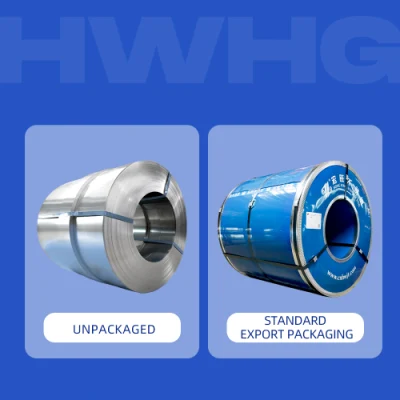

Packaging & Shipping

Customized CRGO Cold Rolled Grain Non Oriented Electrical Steel Coil Silicon Steel Supplier

Certifications

Customized CRGO Cold Rolled Grain Non Oriented Electrical Steel Coil Silicon Steel Supplier

Application

Customized CRGO Cold Rolled Grain Non Oriented Electrical Steel Coil Silicon Steel Supplier

FAQ

Q: How can I get some samples?
A: Catalogue and most sample pieces are already in stock.
     Customized samples will take about 5-7days. Please contact us for further support.

Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request.

Q: How long Can You Guarantee for  this product / finish?
A: Colors guarantee for more than 10 years. Original materials quality certificate can be provided.

Q: What kinds of payment methods do you accept?
A: We accept the payment by T/T or L/C, besides, you can transfer to our bank account, Western Union or PayPal.

Q: What is the average lead time?
A: For samples, the lead time is about 5-7 days.
     For mass production, the lead time is 25-35 days. In all cases, we will try best to accommodate your needs.
