Chuangwan High Quality New Marerial Fiberglass Geogrid Manufacturer

Chuangwan High Quality New Material Fiberglass Geogrid Manufacturer offers reliable geogrid solutions. We are a factory providing top-tier products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product application
  • Project cases
  • Our Advantages
  • Certifications
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
EGA1*1(120*120)-200cm
Application
Retaining Wall, Steep Slop, Dam, Road Base
Viscose
Without Viscose
Function
Anti-slip, Reinforcement, Tear Resistance, Creep Resistance
Classification
Fiberglass Geogrid
Material
Fiberglass
Certificate
ISO9001, ISO14001, ISO45001
Standard
GB/T 21825-2008
Elongation at Break
4% Max
Width
4-6m
Transport Package
Roll Package
Specification
30KN/m--200KN/m
Trademark
Chuangwan
Origin
China
HS Code
3926909090
Production Capacity
50000 Square Meters /Day

Packaging & Delivery

Package Size
580.00cm * 35.00cm * 35.00cm
Package Gross Weight
130.000kg

Product Description

Product Description

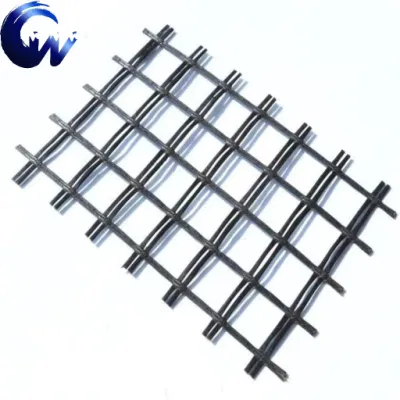

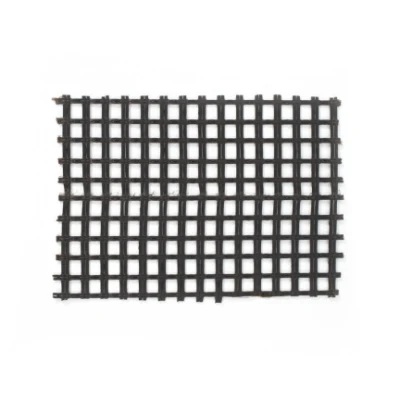

Fiberglass geogrid is selected as the main raw material is alkali-free glass fibre filament, the structure used is woven through the unique manufacturing process of warp knitting, the use of advanced domestic and foreign warp knitting machine weaved into the substrate, and the full use of the fabric in the yarn strength, after a special adhesive coated with a mesh structure formed after the coverage of the material. It fully improves the mechanical properties of the fabric, so that it has a strong degree of tensile strength and tear strength, which can effectively improve the structural distribution of the road, so that the road surface enhancement, delay and resistance to the occurrence of reflective cracks as well as to improve the service life of the road, to prevent highway diseases, and greatly improve the quality of construction.
Chuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid Manufacturer

Glass Fiber Geogrid:                                                                                                        JT/T 480-2002
Item GSB30-30 GSB50-50 GSB80-80 GSB100-100 GSB125-125
Longitudinal and transverse tensile breaking strength per meter,KN/m≥ 30 50 80 100 125
Elongation at break in longitudinal and transverse direction ,%<= 4
Width 4~6m
GB/T 21825-2008
Item EGA1×1(30×30) EGA1×1(50×50) EGA1×1(80×80) EGA2×2(50×50) EGA2×2(80×80)
Longitudinal and transverse tensile breaking strength,KN/m≥ 30 50 80 50 80
Elongation at break in longitudinal and transverse direction ,%<=

4
Width 4-6m

Product application

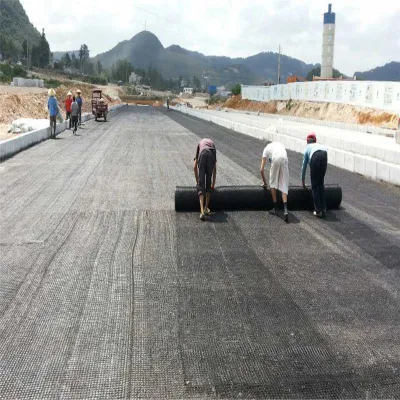

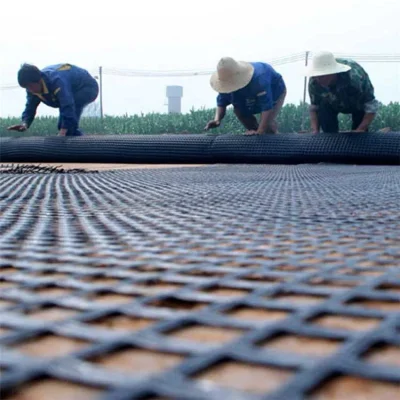

1. Old asphalt concrete pavement, reinforced with asphalt surface layer to prevent and control diseases.
2. The cement concrete pavement is rebuilt into a composite pavement to suppress reflection cracks caused by plate shrinkage.
3. Road expansion and renovation engineering to prevent cracks caused by uneven settlement at the junction of new and old roads.
4. Reinforcement treatment of soft soil foundation is conducive to the consolidation of soft soil, effectively suppressing settlement, evenly distributing stress, and enhancing the overall strength of the roadbed.
5. Shrinkage cracks occur in the semi rigid base of newly built roads, and reinforcement is added to prevent road surface cracks caused by reflection of foundation cracks.

Chuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid Manufacturer



Project cases

Our products are purchased by a large number of domestic builders and are widely used in major domestic high-speed construction projects, such as China Railway 22 Bureau Zhonglan Passenger Specialization,the Baoyi Highway (Yichang section), Ningjie Highway, 318 re-route project, Fuxin Highway, Xuanning Highway, pavement, Yunnan section of the China Railway 10th Bureau, the Yunnan section of the Yunnan Gui Railway, the 23rd Bureau of the China Railway, the West Railway, and so on. Among the products mentioned above, geogrid products are our main products. We strictly comply with our production standards for geogrid production.


partial performance statement
serial number project name time of supply name of product supply
1 China Railway 22 Bureau in the lancer special 2019.1 geogrid,geomembrane
2 China Railway 16 Bureau Haikou city bypass highway 2019.1 steel-plastic geogrid
3 China Railway 17th bureau dainner expressway 2019.6 the geogrid
4 China Railway eighth bureau of changjingyellow Railway 2bid 2019-2021 composite geomembrane
5 Renovation and expansion projectof lingxin avenue of China Railway  tunnel  Group  sanchuCo.LTD 2020.1 the geogrid
6 China Railway 19 Bureau Group  guangzhou engineeringCo.,LTD Nanchong Railway 3 bid 2020.4 the geogrid
7 China Railway material trade  Group  Xi'anCo.,LTD.Ten-feng high-speed line 2020.6 composite geomembrane
8 China Railway 21st bureau Group  No.6 EngineeringCo.,LTD.Anci high-speed ACTJ-2 2020.8 steel-plastic geogrid
9 China communications second highway engineering  bureauCo.,LTD.huangxinandan to tian'exiaolao highway No.1 standard project 2020.12 the geogrid
10 China Railway 24th bureau Group  Co.,LTD.Nantong Expressway SG2 standard project 2021 water spot belt
11 China Railway 8 bureau nanshan road project 2021.10 type B steel-plastic geogrid
12 Beijing-kunming high speed  jk-03  bid of the  sixth branch of CCCC second Aviation engineering bureauCo.,LTD 2022.5 steel-plastic geogrid
13 JK-CO3 contract section of Pucheng to Laogyu section of Bejing KunmingHigh 2022.6 steel-plastic grille
14 JK-2C01 Scandard project of Pucheng to Luoyu Section of Shaame Loia 2022.9 geotextile composite geomembrane
... ... ... ...



Our Advantages

1. Safety production
2. Ensure the quality of goods
3. Timely supply
4. Accept customization of any size specification
5.Five-year warranty

Package&shipping

Chuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid Manufacturer

Laboratory Details

Chuangwan High Quality New Marerial Fiberglass Geogrid Manufacturer
The laboratory has a young, full of innovation and vitality of high-quality research team existing researchers. In order to ensure the high quality and quantity of products, the company spends a lot of money to buy all kinds of testing instruments to set up the company's testing laboratory. And for many years in the production process and the end of production randomly selected product samples sent to the laboratory to ensure product quality. Laboratory existing major testing instruments and equipment dozens of units, with a total value of about 30 million yuan. Among them, the constant temperature and humidity box YG751D-I type is used for all kinds of textiles in the test of physical and mechanical properties before the temperature and humidity balance. Electronic Geotextile Strength Comprehensive Tester YT010S-5000 is used in transportation, water conservancy, tunneling, construction engineering and other industries in the geosynthetics, including geotextiles, composite geotextiles, geogrids, geomembranes, and related products tensile, tearing, tearing, top breakage, peeling, seams, and other properties of the test. It is suitable for the determination of carbon black content in polyethylene, polypropylene and polybutylene plastics. The test of carbon black is obtained by weight analysis of the specimen after high temperature decomposition under nitrogen protection. The instrument has the advantages of easy to use, simple operation, accurate measurement and high degree of automation. Automatic Geotextile Thickness Tester Model YT060S is used for the determination of the thickness of geosynthetics and related products under different pressures and specified time. Geotextile Effective Aperture Tester YT030G is used for the determination of effective aperture of geotextile and composite geotextile by dry sieve method.  Full-automatic geosynthetics vertical permeability meter YT020PC type is suitable for all kinds of geotextile and composite geotextile with water permeability performance under constant head for ve


Chuangwan High Quality New Marerial Fiberglass Geogrid Manufacturer

Certifications

Chuangwan High Quality New Marerial Fiberglass Geogrid ManufacturerChuangwan High Quality New Marerial Fiberglass Geogrid Manufacturer


Company Profile

Anhui Chuangwan New Materials Co., Ltd. Is located in the industrial new town of Dashu town, Quanjiao county, Chuzhou city, which is the Jianghuai watershed where mountains and rivers are beautiful and humanities gather together in eastern Anhui, has been rising rapidly in the fierce market competition since its establishment in 2017 through the unremitting efforts of all Chuangwan people. It is a private science and technology enterprise specializing in the research, manufacturing and sales of high-speed railway (highway) polymer materials. The company has passed ISO9001-2015 Quality system certification, ISO14001-2015 Environmental management system certification, ISO45001-2018 Occupational Health and safety management system certification, China railway corporationrailway products - geosynthetic materials CRCC certification, now the product has diversified development.
click here for more information https://ahcw5291999.en.made-in-china.com/
Chuangwan High Quality New Marerial Fiberglass Geogrid Manufacturer

Chuangwan High Quality New Marerial Fiberglass Geogrid Manufacturer


FAQ

Q1. Can you do OEM?
A1. Yes.of course.We can produce the products as per your request.
If you can offer samples to us,it will be more convenient.
Q2. If I want to order a small quantity goods,can you do it?
A2. If the product you need we have stock available,that would be great,you can choose the instock goods. but if not, don't worry, we can take your order with our other clients' order to be produced together.But it needs to wait some time .
Q3. Can I get a sample from your company?Should I pay for the express fee?
A3. If you can accept our available sample,we can offer free sample to you.
If you want a customized sample,we can renegotiate the cost.
About the express fee,please offer a freight collected account and pay for the express fee by your side. After confirming your order, the sample's freight cost will be deducted from your order's total cost.
Q4. How will you follow my order?
A4. When the goods are started to produce,we will take photos for the goods and send it to you.
If you find any production deficiencies,please contact us to correct it.
We will keep in touch with you in the whole production by e-mail or instant messaging, like Skype/Viber/WhatsApp, you can get the latest news about your order.
After the goods are finish,we will take photos for the goods and packing to you before shipping.
Q5. What is your exporting countries?
A5. We have good sales performance and win good international reputation in more than 15 Countries and  regions,such as Japan, America, Australia,Russia, Canada,Middle East and so on.
