Basic Info.
Model NO.
Dx51d SGCC Z100 Az100 SPCC SGCC
Samples
Available
Processing
Welding, Punching, Cutting, Bending, Decoiling
Tolerance
+/-1%
MOQ
1 Ton
Thickness
0.13- 0.8 mm or as Request
Delivery Time
15-21 Days
Zinc Coating
20-120 GM/M2
Width
600mm - 1250mm or as Request
Transport Package
Standard Seaworthy Export Packing
Specification
customized
Trademark
Duohe
Origin
Shandong, China
HS Code
721823
Production Capacity
100, 000 Tons Per Year
Product Description
https://dhstainless.en.made-in-china.com/product-group/jbktoWexhgRL/PPGI-PPGL-1.html

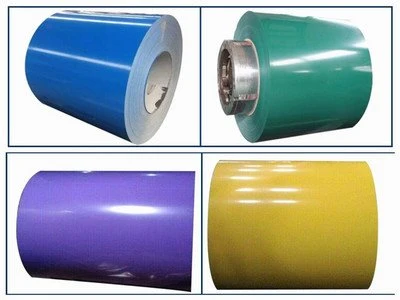

Pre-Painted Galvanized Steel Coil (PPGI)
Pre-Painted Galvalume Steel Coil (PPGL)
Color coated coil is hot galvanized plate, hot galvanized aluminum zinc plate, galvanized plate and other substrates, after surface pretreatment, on the surface coated with a layer or several layers of organic coating, and then after baking curing products .
In addition to the zinc layer protection, the organic coating on the zinc layer plays a role in covering and protecting the steel coil from rust. The service life of the steel coil is longer than that of the galvanized coil, about 1.5 times.
Color coated coil has characteristics with light weight, beautiful appearance and good corrosion resistance, can be directly processed, and different patterns and colors can be customized according to customer's needs and requirements, we are sure that you can always select one type that meet you best.
Pre-Painted Galvanized Steel Coil (PPGI)
Pre-Painted Galvalume Steel Coil (PPGL)
Color coated coil is hot galvanized plate, hot galvanized aluminum zinc plate, galvanized plate and other substrates, after surface pretreatment, on the surface coated with a layer or several layers of organic coating, and then after baking curing products .
In addition to the zinc layer protection, the organic coating on the zinc layer plays a role in covering and protecting the steel coil from rust. The service life of the steel coil is longer than that of the galvanized coil, about 1.5 times.
Color coated coil has characteristics with light weight, beautiful appearance and good corrosion resistance, can be directly processed, and different patterns and colors can be customized according to customer's needs and requirements, we are sure that you can always select one type that meet you best.
| Product Name | PPGI | PPGL |
| Material | DX51D | CGCC,SGCH,G350, G450,G550,DX51D, DX52D, DX53D |
| Zinc coating | 20 ~ 120g/m2 | 40 ~ 275 g/m2 |
| Thickness | 0.13mm ~ 0.8mm | 0.12mm-2.5mm |
| Width | 600mm ~1250mm | 20mm ~1500mm |
| Coil Weight | 3~8 tons | 3~5 tons |
| Coil ID | 508/610mm | 508/610mm |
| Color | all RAL color, as client's request | all RAL color, as client's request |
| Paint | top paint: 10-30 um, back paint:5-25 um | Top paint: 15-25 um, back paint: 7+/-2 um |
| Coating type | PE, SMP, HDP, PVDF | PE, SMP, HDP, PVDF |
