Cheap Price Non Woven Nonwoven Filter Fabric for Road Driveway Geotextile

Looking for cheap non woven filter fabric for road driveways? Our factory produces high-quality geotextile at an affordable price. Order now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Technical Sheet
  • Functions
  • Applications
  • Feedback
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
SPP-1
Certification
CE, ASTM Test Report
Feature
Corrosion Resistant, Oxidation Resistance, Wear-resistant
Usage
Insulation
Material
PP
Kind
Non-woven
Grammage
120g-1000g
Width
1m-8m
Length
50m-200m
Application
Building Construction
Keyword
Non Woven Geo Textile
Certificate
ISO9001
Package
PE Film
MOQ
2000sqm
Size
Customized Size
Transport Package
Plastic Packaging Bag
Specification
5.8m*100m
Trademark
SDJRX
Origin
China
HS Code
5602100000
Production Capacity
50000m2/Day

Packaging & Delivery

Package Size
580.00cm * 35.00cm * 35.00cm
Package Gross Weight
116.000kg

Product Description

Product Description

Cheap Price Non Woven Nonwoven Filter Fabric for Road Driveway GeotextilePolypropylene staple fibers are made into cotton nets by carding machine, and then cross-layered. Or directly by the airflow netting machine into a cotton net with mixed arrangement of fibers, in order to achieve isotropic when forming cloth.
Then after a large number of felting needles consisting of a group or several groups of needle plate, needle felting fiber network. The fibers are made to entangle with each other and squeeze together to form a high quality polypropylene nonwoven fabric.
Cheap Price Non Woven Nonwoven Filter Fabric for Road Driveway GeotextileIt has excellent water permeability, filtration, durability, creep resistance and corrosion resistance, etc. Short fiber geotextile fabric is usually not used alone. It is in the dyke slope, lining bottom that are covered under the block of stone or concrete precast slab. Thereby, a stable protective body is formed.

Technical Sheet

Cheap Price Non Woven Nonwoven Filter Fabric for Road Driveway Geotextile

Mass per unit area(g/m2) 100 150 200 250 300 350 400 450 500 600 800
Deviation of mass per unit area, % -8 -8 -8 -8 -7 -7 -7 -7 -6 -6 -6
Thickness, mm ≥ 0.9 1.3 1.7 2.1 2.4 2.7 3.0 3.3 3.6 4.1 5.0
Width deviation, % -0.5
Breaking strength, kN/m≥ 2.5 4.5 6.5 8.0 9.5 11.0 12.5 14.0 16.0 19.0 25.0
Elongation at break, % 25~100
CBR breaking force, kN≥ 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4.0
Equivalent aperture O90, mm 0.07~0.2
Tearing strength, kN 0.08 0.12 0.16 0.20 0.24 0.28 0.33 0.38 0.42 0.46 0.60

Functions

  • Excellent isolation effect: Utilize good air permeability and water permeability of geotechnical cloth, so that the flow of water through, and effectively retain the sand and soil.
  • Good water guide and drainage: The geotechnical cloth has good water conductivity, it can form a drainage channel in the soil, and discharge excess liquid and gas out of the soil structure.
  • Best creep resistance: By using the geotextile to enhance the soil's tensile strength and anti deformation ability, enhance the stability of the building structure, play the role of reinforcement so as to improve the quality of the soil.
  • Protect soil body: Effectively make the concentrated stress diffusion, transmit or decomposition, prevent the soil from being destroyed by external forces.
  • Good isolation effect: Prevent the upper and lower layers of gravel, soil and concrete mixed.
  • The mesh is not easy to be blocked: Due to unshaped fibrous tissue forms mesh structure has the characteristics of flexibility and Athletic performance.
  • High permeability: Under the pressure of the soil and water, it still can maintain good water permeability.
  • Corrosion resistance: Polypropylene or polyester fiber as raw material, acid and alkali resistance, no corrosion, no worm damage, antioxidant.
  • Convenient construction: Lightweight, easy to use, construction is simple.

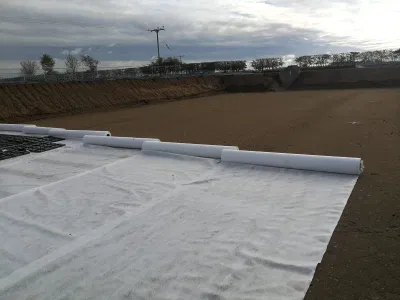

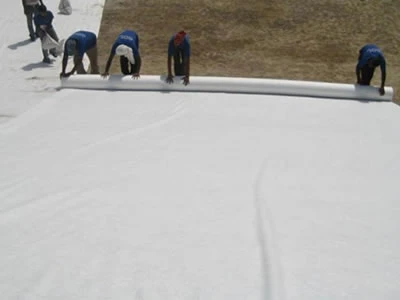

Applications

Cheap Price Non Woven Nonwoven Filter Fabric for Road Driveway Geotextile

Feedback

Cheap Price Non Woven Nonwoven Filter Fabric for Road Driveway Geotextile

Packaging & Shipping

Cheap Price Non Woven Nonwoven Filter Fabric for Road Driveway Geotextile

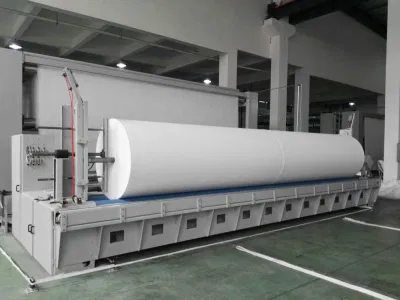

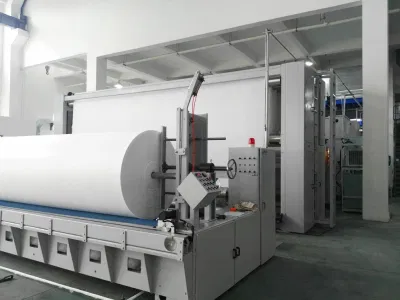

Company Profile

Cheap Price Non Woven Nonwoven Filter Fabric for Road Driveway Geotextile

FAQ

Q : Are you a factory or trading company?

A : We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane etc with ISO9001 certificate more than 15 years.

Q : Where is your factory located? How can I visit there?

A : Our facoty is located is No.10 Yuanshan Road High-tech Development Zone, Laiwu District, Jinan City China. You can take the plan to Jinan Yaoqiang International Airport, then we can pick you up.

Q : Could you send the sample before order confirmation?

A : Yes, we'd love to send a free sample to you for an evaluation if you need.

Q : How about the delivery time?

A : General within 3-7 days after received the deposit.

Q : Can you produce the product according to customers' requirements?

A : Sure, we are professional manufacturer, OEM and ODM are both welcome.
