Building Material Z30 Z40 Z50 Galvanized Steel Coil Gi Steel

Shop Z30 Z40 Z50 Galvanized Steel Coil Gi Steel from our factory. High-quality building material for your construction needs. Order now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Our Factory
  • Quality Testing
  • Packaging & Shipping
  • About us
  • Certifications
  • FAQ
Overview

Basic Info.

Model NO.
dx51d
Application
Flange Plate
Edge
Slit edge
Stock
Stock
Material
Dx51d/SGCC
Thickness
0.4-2.0mm
Width
20-600mm, or as Request
Coil ID
160mm/200mm/220mm/508mm
Coil Weight
2-5tons
Zinc Coating
30-275G/M2
Spangle
Zero/Mini/Regular/Big
Surface Treatments
Chromed/Skin Pass/Oiled/Slightly Oiled/Dry
Usage Industry
Structure/Motorbike and Automobile/Ornamental
Package
Sea Worth
MOQ
10tons
Delivery Time
7-10days
Density
7.85
Transport Package
Standard Export Packing or as Request
Specification
According the order
Trademark
ZUNKAI
Origin
Shandong
Production Capacity
50000 Tons Per Month

Product Description




Product Description


Galvanized coil is a thin steel sheet that is immersed in a molten zinc bath to make a layer of zinc adhere to its surface. It is mainly produced by continuous galvanizing process.

It is made by hot dip method, but it is heated to about 500°C immediately after it comes out of the tank, so that it can form an alloy film of zinc and iron. This galvanized coil has good paint adhesion and weldability.

Standard ASTM, AISI, DIN, GB, EN, JIS etc
Grade SGCC, DC51D, DX51D, DX52D, SGCD, SGHC, DX54D, S350GD, S450GD, S550GD etc
Thickness 0.12mm-4.0mm or 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm,etc
Width 600mm, 762mm, 914mm, 1000mm, 1200mm, 1219mm, 1250mm, 1500mm
Zinc Coating Z40-Z275g/m2, or as clients required
Spangle Big,regular,mini or zero spangle
Hardness Soft or hardness, as clients required
Packing Waterproof paper+plastic film+iron packing+bundling or as per customers request
Application Ceiling channel,industrial refrigeration,cold storage,sandwich panel,PU panel,writing board,PCM steel plate
Delivery time  In 15-30 after receipt advance or LC
Payment T/T or L/C at sight
Min order  25 Mt (one 20ft FCL)


GALVANIZED STEEL COIL STOCK LIST
DATE:2023.04.10
PRODUCT COLOR SIZE WEIGHT WAREHOUSE

GI Zinc coating 40-100 0.15*1250*C 6.65 Tianjin
GI 0.15*1250*C 6.22 Tianjin
GI 0.2*1250*C 6.05 Tianjin
GI 0.2*1250*C 6.05 Tianjin
GI 0.25*1250*C 6.25 Tianjin
GI 0.25*1250*C 5.65 Tianjin
GI 0.28*1250*C 5.12 Tianjin
GI 0.28*1250*C 5.24 Tianjin
GI 0.28*1250*C 5.33 Tianjin
GI 0.3*1250*C 5.63 Tianjin
GI 0.3*1250*C 6.32 Tianjin
GI 0.3*1250*C 4.56 Tianjin
GI 0.45*1250*C 6.32 Tianjin
GI 0.45*1250*C 4.21 Tianjin

GI 0.45*1250*C 5.68 Tianjin
GI 0.45*1250*C 5.09 Tianjin
GI 0.5*1250*C 5.56 Tianjin
GI 0.5*1250*C 5.63 Tianjin
GI 0.5*1250*C 5.11 Tianjin
GI 0.5*1250*C 5.98 Tianjin
GI 0.5*1250*C 5.86 Tianjin
    0.5*1250*C

There are two main types of galvanizing processes: hot-dip galvanized and cold-dip galvanized.
Cold galvanized is also called electro galvanizied.The fields involved in electro-galvanizing are becoming more and more extensive. The application of fastener products has been widely used in machinery manufacturing, making galvanized chain link fences, electronics, precision instruments, chemicals, transportation, aerospace, etc., which are of great significance in the national economy. Hot-dip galvanizing is especially suitable for strong corrosive environments such as various strong acids and alkali fog.


Building Material Z30 Z40 Z50 Galvanized Steel Coil Gi Steel

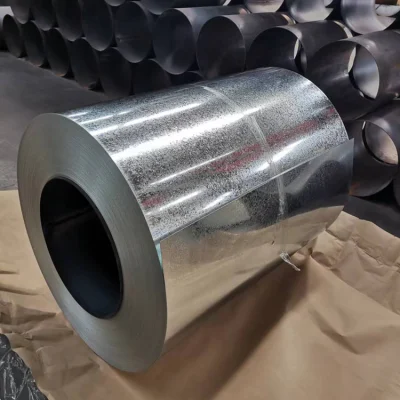

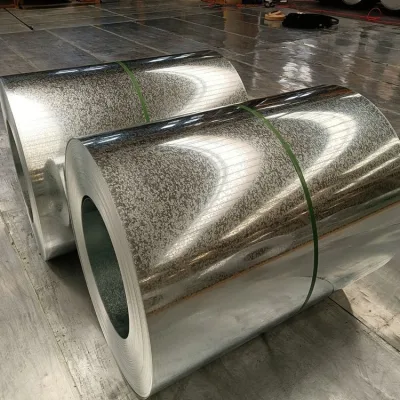

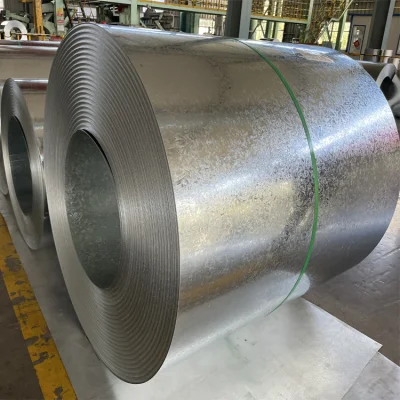

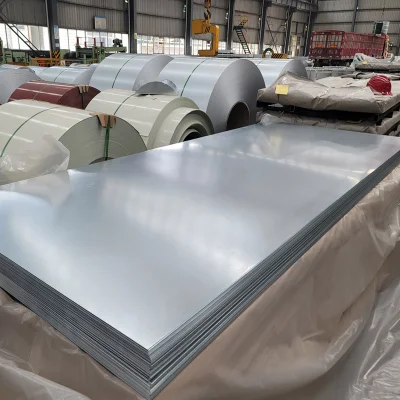

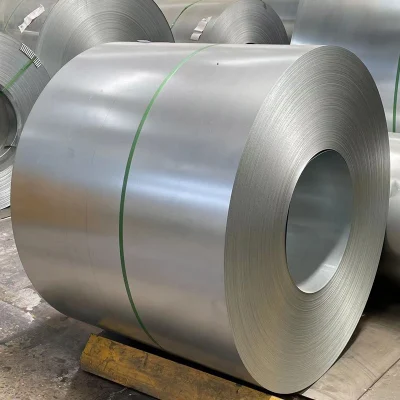

Detailed Photos

Building Material Z30 Z40 Z50 Galvanized Steel Coil Gi Steel
Why is galvanized anti-rust?
Zinc has anti-rust and anti-corrosion effects, and galvanized steel can prevent rust. Galvanized steel includes galvanized sheets, galvanized pipes, etc., which are made of low-carbon steel plates and pipes. Low-carbon steel is an iron-carbon alloy, which is easy to rust. The surface is coated with a thin layer of zinc. Zinc is a non-ferrous metal. It has good anti-rust and anti-corrosion properties, which can isolate carbon steel from air, zinc does not contain iron, and galvanized carbon steel does not undergo oxidation reaction and will not rust.


Building Material Z30 Z40 Z50 Galvanized Steel Coil Gi Steel
What is galvanized steel coil used for?
Galvanized steel coil and sheet products are now being used for a wide range of electric appliances, automobiles and other industrial machinery as well as for civil engineering and architectural purposes.

Is galvanized steel spark resistant?
Yes, hot-dip galvanized coatings are anti-sparking and non-incendiary as are most zinc coatings.

Why can't you heat galvanized steel?

High temperatures above 480 F (250 C) will accelerate peeling and continued exposure can result in the zinc-iron alloy layers cracking and separating from the steel. Temperature applications of hot-dip galvanized steel above 480 F (250 C) are not recommended.

Does fire damage galvanized steel?
Temperatures in fires can easily exceed 1,000 F. There is a potential for coating damage but
many have found fire damage to minimal on galvanized steel. Often a layer of carbon dust coats the galvanized surface and under this layer the coating is intact.

Our Factory



Building Material Z30 Z40 Z50 Galvanized Steel Coil Gi Steel
What is the difference between galvanized and stainless steel?
The concepts of galvanizing and stainless steel are different. Galvanizing is a layer of metal zinc coated on the surface of the steel plate to prevent corrosion of the steel plate surface and prolong the service life; stainless steel refers to the resistance to weak corrosive media such as air, steam, water, and acids, alkalis, Steel corroded by chemically corrosive media such as salt, also known as stainless acid-resistant steel.

Galvanizing refers to a surface treatment technology that coats a layer of zinc on the surface of metals, alloys or other materials for aesthetics and anti-rust effects. The main method used is hot-dip galvanizing.

Advantages and disadvantages of galvanized steel compared with stainless steel: zinc steel has corrosion resistance, enhanced strength, steel deformation is not easy to break and environmental protection, and is not easy to rust. It is suitable for some public environmental hardware facilities used in harsh environments (wet, acid-base and other indoor and outdoor environments), and if the surface is sprayed and colored, the adhesion strength will be higher, but the corrosion resistance will disappear after the surface zinc layer is damaged. Stainless steel will not corrode, pit, rust or wear, and can achieve the highest strength of the two, but it is also expensive and difficult to weld. The biggest advantage of zinc steel is that it is cheap, and the biggest disadvantage is that it is not corrosion resistant.


Galvanized Chemical Composition
   Metal type Grade CHEMICAL COMPOSITION %
C Si Mn P
cold rolled steel sheet DC51D+Z (St01Z, St02Z, St03Z) , DC51D+ZF ≤0.10 - ≤0.50 ≤0.035
DC52D+Z (St04Z), DC52D+ZF ≤0.08 - ≤0.45 ≤0.030
DC53D+Z (St05Z), DC53D+ZF ≤0.08 - ≤0.40 ≤0.030
DC54D+Z (St06Z), DC54D+ZF ≤0.01 ≤0.10 ≤0.30 ≤0.025
DC56D+Z (St07Z), DC56D+ZF ≤0.01 ≤0.10 ≤0.30 ≤0.025
hot rolled steel sheet DD51D+Z (St01ZR, St02ZR) ≤0.10 - ≤0.50 ≤0.035
DD54D+Z (St06ZR) ≤0.01 ≤0.10 ≤0.30 ≤0.025


Building Material Z30 Z40 Z50 Galvanized Steel Coil Gi Steel Galvanized Coil is very versatile,such as fire building engineering,power construction project,machine made, automobile industry and etc.
Quality Testing



Building Material Z30 Z40 Z50 Galvanized Steel Coil Gi Steel
Packaging & Shipping
1.Packing :3 layers of packaging, kraft paper inside, water plastic film in the middle, the outermost GI steel plate tied with steel belt or as required.
2.Shipping port: Tianjin/Shanghai/Qingdao
3.Shipment:
a. Length: ≤6m, loaded in 20GP Container.
b. Length: ≤12m, loaded in 40GP Container.
Remark: Size of 20GP Container (inside :5898*2352*2393mm)
Size of 40GP Container (inside:12032*2352*2393mm)
Size of 40HQ Container (inside:12032*2352*2698mm)
4.Delivery time: Within 7-15 days, depending on the situation

Building Material Z30 Z40 Z50 Galvanized Steel Coil Gi Steel

Building Material Z30 Z40 Z50 Galvanized Steel Coil Gi Steel
About us
Jinan Zunkai Group founded in 2002, with five branch companies and is well-funded. Our annual sales nearly one billion, about 300,000 tons steel. Our company is located in Jinan City, Shandong Province. We entered into a strategic partnership with Bao Steel, Laiwu Steel, Rizhao Steel, Handan Steel, Anyang Steel, Maanshan Steel and other domestic large steel companies. Zunkai is the largest steel agent in Shandong Province, we also have ourselves steel process factory with 100000 Square meter for steel laser cutting,surface treatment and other further processing , and our stock always more than 20,000tons.Zunkai Group mainly engaged in : PPGI ,galvanized steel , steel plate , round bar, steel pipe ,Stainless steel product ,angle bar, steel pile ,H beam ,l beam, angle, Channel flat steel and etc . Our good quality and reliable service will be your best trusted partner.Sincerely wish to building long and regular business with you forever!!!

Building Material Z30 Z40 Z50 Galvanized Steel Coil Gi Steel



Certifications

Building Material Z30 Z40 Z50 Galvanized Steel Coil Gi Steel

Building Material Z30 Z40 Z50 Galvanized Steel Coil Gi Steel



FAQ
1. Who are we?
We are based in Shandong, China, start from 2016,sell to South America(20.00%),Africa(20.00%),Southeast Asia(15.00%),Central America(10.00%),North America(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),South Asia(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. What can you buy from us?

Galvanized Steel,Corrugated Roofing Sheet,Galvanized Coil,PPGI,PPGL,Steel Plate,Steel Stainless and etc.

3. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA;
Accepted Payment Currency:USD, EUR, JPY, HKD, CHF;
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash.

4.Are you a factory or a trading company?

We have both factory and trading company,own branch factory and warehouse in Shandong Province to provide you nice goods with best price and good quality.
