Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn

Get high-quality Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn from our factory. Durable and reliable for all your construction needs!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Our Advantages
  • Specifications
  • Application
Overview

Basic Info.

Model NO.
10kn to 800kn
Classification
Fiberglass Geogrid
Material
Fiberglass
Raw Material
Fiberglass Yarns
Tensile Strength
30-300kn/M
Mesh Size
12.7-50mm
Coating
Bitumen
Width
1-6m
Length
50-100m
Certificate
CE /ISO9001
Usage
Asphalt Road,Asphalt Layer,Asphalt Pavement
Transport Package
PE Bags+Colored Tapes
Specification
3.95*100m/roll
Trademark
Lianyi Jiuzhou
Origin
China
HS Code
701959000
Production Capacity
1000000 Sqm Per Day

Product Description

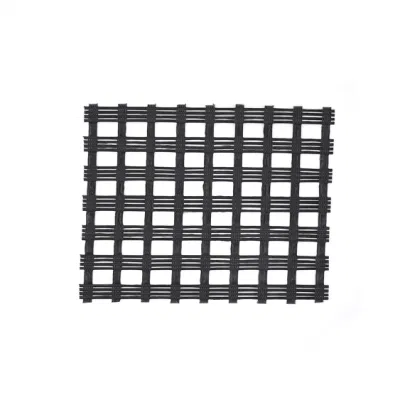

                                                    Asphalt road reinforcement fiberglass geogrid bitumen geogrid

Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn
Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn
Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn



Product Description

Fiberglass geogrid   is a kind of new favorable earthwork base material to strengthen the road surface and roadbed. This product is made by weaving and covering fiberglass filament. It is featured by high vertical and horizontal tensile strength, low unit extension, high flexibility, and favorable high and low temperature resistance. The products after surface covering own the favorable property of alkali resistance and aging resistance.

Our Advantages

1.It is manufactured to ISO 9001 quality standards.

2.It has excellent UV and oxidation resistance and performance is not affected by creep.
3.It is easily milled and recycled and environmentally friendly.
4.It is suitable for use in paving fabric applications.
5.It has a low elongation,extend the life of roads, runways and parking lots and lower maintenance costs.


Specifications


Property Test Method GG3030 GG5050 GG8080 GG100100 GG120120 GG150150 GG200200
Ulimate tensile strength(kn/m) MD EN ISO 10319 30 50 80 100 120 150 200
CD 30 50 80 100 120 150 200
Elongation at max load (%) MD 3
CD 3
Mesh Size (mm) 12-50
Roll width(m) 1-6
Roll length(m) 50-200




Application


1. The old asphalt concrete pavement, reinforced asphalt surface enhancement, disease prevention and control.
2. Cement Concrete Pavement composite pavement reconstruction, inhibit the contraction caused by the reflection plate cracks.
3 .Road extension project, combining old and new prevention department and uneven subsidence caused cracks.
4 .Radical reinforcement of soft soil treatment, water is conducive to the consolidation of soft soil analysis, effectively inhibit the settlement, uniform stress distribution, and enhance the overall strength of the roadbed.


Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn
Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn
Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn

Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn
Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn
Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn




Company Information

Feicheng Lianyi Engineering Plastics Co., Ltd is the currently one of the biggest geosynthetics manufacturer in China . It is located in Feicheng city,Shandong province of China. We are specilized in series of Geogrids, Geotextiles,Geomembranes,Geocell etc,and have the absolutely advantage for the quality in this field of China.

Our Main products include PP Biaxial Geogrid,Fiberglass Geogrid,Self adhesive Fiberglass Geogrid,Polyester Geogrid,HDPE Uniaxial Geogrid,Welded Geogrid,Composite Fiberglass Geogrid & Polyester geogrid with Spunbond nonwoven geotextile or Needlepunched Nonwoven geotextile by glue,Fiberglass Geogrid & Polyester Geogrid knitted Spunbond Nonwoven geotextile or Needlepunched Nonwoven geotextile impregnated by bitumen,Combigrid (PP Biaxial Geogrid with Nonwoven Geotextile by welding),Nonwoven Geotextile,HDPE Geocell,PP Woven Geotextile,Mining Geogrid etc .

We have always adhered to the philosophy of prioritizing quality, strict management, high-quality service, following customer requirements, consistently exploring and advancing, serving customers well. Integrity first, efficient service, high quality products, sincere cooperation,We hope to maintain long-term cooperation with you


Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn

Our Certificates


Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn

Exhibitions

Bitumen Coated Asphalt Reinforcement Fiberglass Geogrid 50-50kn 100-100kn

FAQ
Q1:What is your delivery time?
A1:Generally it is 5-10 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q2:Where is your company?
A2:Feicheng shandong province, China and if you want to coming,please call me ,I will arrange your schedule.
Q3:Are you trading company or manufacturer?
A3:We are manufacturer and we have BV certification. So we have a lower price than trading company.
Q4:What is your delivery method?
A4:T/T, Western Union, L/C etc
Q5:Do you provid samples?Is it free or extra?
A5:Yes, we can offer the sample for free charge but do not pay the cost of freight.
Q6:What is your terms of payment?
A6:Payment<=1000USD,100% in advance.Payment>=1000USD, 30%T/T in advance, balance before shippment. If you have another question, please to contact me.
