7 Electric Multi-Functional Universal Orthopedic Surgical Operating Table Maquet

Welcome to our factory. We design and manufacture the 7 Electric Multi-Functional Universal Orthopedic Surgical Operating Table Maquet. High quality equipment for your surgical needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Packaging & Shipping
  • Company Profile
  • Certifications
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
HE-508A
Equipment
Surgical Taable
Application
Hospital, Operating Room, Clinic
Function
7 Electric
C Arm
Compatible
X Ray
Compatible
Slide
Yes
Wheels
Yes, Hidden Type
Material
Stainless Steel+ High Density Sponge
Transport Package
Ploy Wood
Specification
154X95X98
Trademark
Howell
Origin
China
HS Code
9402900000
Production Capacity
50

Product Description

Product Description

7 Electric Multi-Functional universal Orthopedic Surgical Operating Table Maquet
7 Electric Multi-Functional Universal Orthopedic Surgical Operating Table Maquet
Advantage:

* Electric Built-in Kidney bridge
* Electric braker
* X-Ray : Perspective
* High density memory sponge
* Slide: 310mm
* Bearing capacity: 270kg
* T-shaped base design,convenient for doctor put foot when surgery
* Position memory: 3 set, can be saved and delected
* Column panel controller and wire hand controller
* One-key reset funtion
* Equipped with emergency power supply function

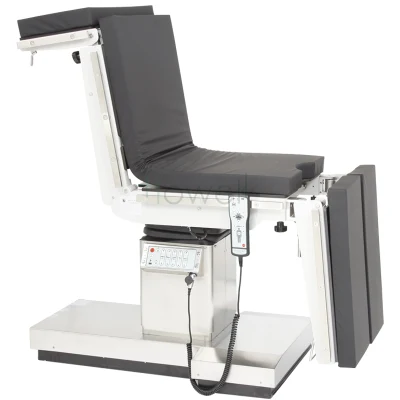

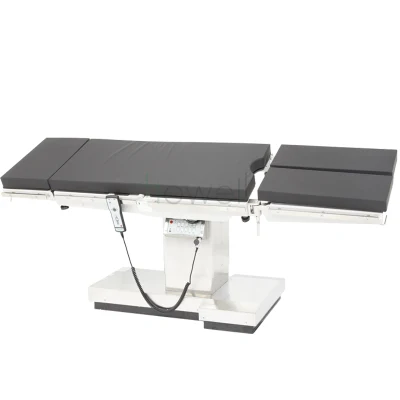

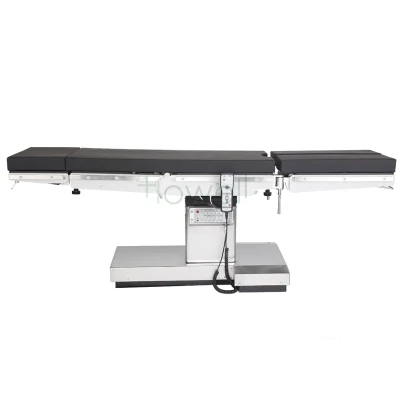

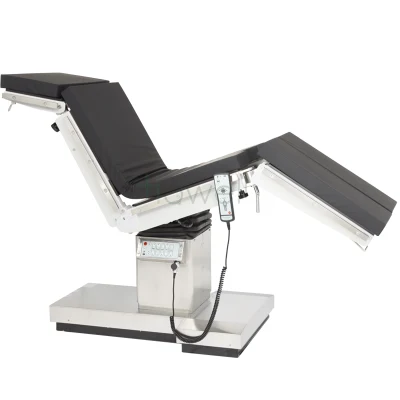

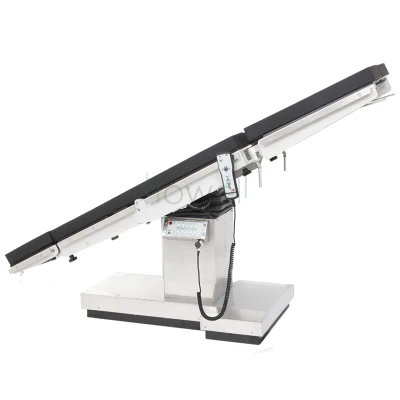

Detailed Photos

7 Electric Multi-Functional Universal Orthopedic Surgical Operating Table Maquet
This surgical table can be used for different surgery and multifunction use. For urinary surgery, thoracic surgery, kidney surgery,orthopedics and other surgery need to use C-arm, X-ray machine, For microsurgical operations, neurosurgery,ophthalmology and otorhinolaryngology, facial/plastic surgery, ENT(ear, throat, eye) surgery spine and kdney surgery, thoracic and renal surgery

1. Using electric push rod transmission instead of hydraulic transmission technology, no risk of oil leakage in hydraulic transmission, uniform and stable running speed, accurate body position, reliable performance and durability.
2. Equipped with a one-key reset function, which is convenient for post-operative finishing and cleaning in the operating room and improves work efficiency.
3. Multi-point position memory function, one key to restore to the preset position and height, easy to operate and efficient.
The electric operation of the base brake is completed, and the table can be firmly fixed.
4. Electric built-in kidney bridge, easy to operate, there is no protruding mechanism under the bed, which is convenient for the X-ray machine to move and operate during the operation.
5. T-shaped base design, there is enough space for the doctor to use, reducing the doctor's fatigue during the operation.
6. The head and leg plates are interchangeable, and the table can be flexibly adjusted according to the surgery needs.

Product Parameters
Item Parameter
Height(mm) 680-980 Without mattress
Tabletop length(mm) 2080 /
Tabletop width(mm) Exclude 525, including 565
Longitudial slide(mm) 310 electric
built-in kidney bridge(mm) 0-126 electric
Trendelenburg&Reverse Trendelenburg (°) 31/31 electric
Left/Right Tilt(°) 21/21 electric
Back Plate/backrest (Up/Down)(°) UP≥82,DOWN≥32 electric
Leg Plate adjustment (Up/Down)(°) UP 50,DOWN ≥93 pneumatic
Leg holder outreach adjustment)(°) ≥95 remove
Back Plate(°) Up 50,down 93 Pneumatic remove
Load Capacity 270kg



Standard accessories
Mattress 1 set
Hand control 1 set
Waist support 2 pcs
Shoulder support 2 pcs
Hand/arm support 2 pcs
Leg holder 2 pcs
Side rail radial clamp 2 pcs
Side rail clamp 3 pcs

7 Electric Multi-Functional Universal Orthopedic Surgical Operating Table Maquet 7 Electric Multi-Functional Universal Orthopedic Surgical Operating Table Maquet

Packaging & Shipping
Trade Items
MOQ
1 Set
Packaging
Plywooden case with foam
Payment
T/T ; Western Union /Cash
Port
Guangzhou,Huangpu or others
Delievery time
3-7 days after receive deposit

7 Electric Multi-Functional Universal Orthopedic Surgical Operating Table Maquet

Company Profile

7 Electric Multi-Functional Universal Orthopedic Surgical Operating Table Maquet

Certifications



7 Electric Multi-Functional Universal Orthopedic Surgical Operating Table Maquet
Our Advantages

7 Electric Multi-Functional Universal Orthopedic Surgical Operating Table Maquet

FAQ
1. How are we going to install the equipment after purchasing ?
We provide professional installation video to illustrate
2. How do you make sure that the product has high quality ?
We have CE.and ISO 13485 certificate we also have production inspection report before packing.
3. Can you put our logo on products ?
Absolutely yes with detailed informaton such as logo we will show you pictures of your logo on the product before packing.
4. Do you accept OEM ( equipment manufacturer service) ?
Yes! we accept any OEM service since we are a professional manufacturer for medical EQUIPMENT with about 10+year's of oemexperiences.
