500 Microns HDPE Geomembrane

Get top-quality 500 Microns HDPE Geomembrane from our factory. Durable, reliable, and cost-effective solution for your containment needs. Contact us today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
500 microns
Product Name
HDPE Geomembrane Pond Liner
Another Name
Landfill Underground Waterproof Membrane
Keyword
HDPE Geomembrane Waterproof Liner
Usage
Waterproof Projects
Description
Pond Smooth Surface HDPE Liners
Category
Black Smooth HDPE Geomembrane
Color Classification
Black White Blue Green (Customized)
Raw Material
HDPE LDPE LLDPE PVC PE
Standard
ASTM Gri-GM13
Thickness
0.2mm-5mm
Length
50m-200m/Roll (as Request)
Width
0.2-12m
MOQ
500m2
Life Span
5-50 Years
Sample
Freely
Transport Package
Container
Specification
thickness: 0.2-5.0mm, width: 1-12m, smooth
Trademark
OBOR
Origin
Taian, Shandong, China
HS Code
3920109090
Production Capacity
50000m2/Day

Product Description

OBOR ASTM HDPE Geomembrane Pond Liners

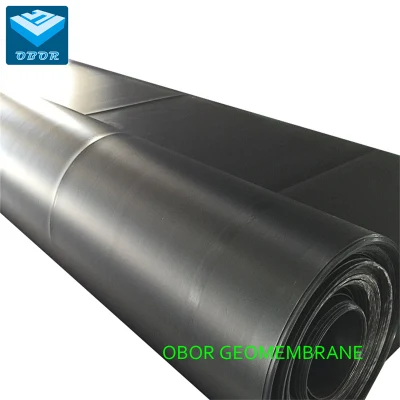

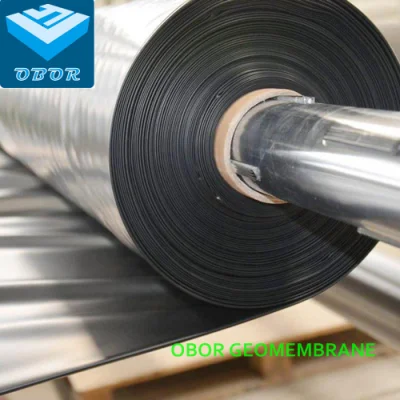

500 Microns HDPE Geomembrane
Basic Details
OBOR Geomembrane; pond liner
1.Main Thickness:0.5mm, 0.75mm,1.0mm,1.5mm,2.0mm
2.Main Width:4m, 5m, 5.8m, 6.0m, 7m, 8m
3.Main Length:50m/100m
4.Main Color: black, white, blue, green
5. Optional surface: Textured or Smooth surface.
6.Material:HDPE, LDPE,LLDPE,EVA
7. Certificate & Test: ISO, TRI, SGS
8. Quality Control: Third party test and factory lab test

HDPE Geomembrane and pond liner is produced from high density polyethylene resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component. Now it is the most widely used products for solid waste containment (such as landfill liners), mining and water containment applications.
500 Microns HDPE Geomembrane
Characteristics:
1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation


  Main Features:
1.UV resistance
2. Anti-seepage;
3. Isolation
4. High tearing resistance
5. Puncture-resisting

Blue and green geomembrane
500 Microns HDPE Geomembrane

HDPE Geomembrane pond liner TechnicalParameter
ASTM Standard geomembrane

                   Spec
Properties
Test method
ASTM
GMS0.5 GMS0.75 GMS1.0 GMS1.25 GMS1.5 GMS2.0 GMS2.5
Thickness D5199 0.5mm 0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm
Density (≥  g/cc) D1505 0.940 0.940 0.940 0.940 0.940 0.940 0.940
Tensile Properties
(Each direction) (≥)
•   yield strength
•   break strength
•   yield elongation
•   break elongation
D 6693
Type IV


8 kN/m
14kN/m
12%
700%


11 kN/m
20kN/m
12%
700%


15 kN/m
27 kN/m
12%
700%


18 kN/m
33 kN/m
12%
700%


22 kN/m
40 kN/m
12%
700%


29 kN/m
53 kN/m
12%
700%


37kN/m
67kN/m
12%
700%
Tear Resistance (≥) D 1004 64 N 93 N 125 N 156 N 187 N 249 N 311 N
Puncture Resistance (≥) D 4833 160 N 240 N 320 N 400 N 480 N 640 N 800 N
Stress Crack Resistance (≥) D 5397 500 hr. 500 hr. 500 hr. 500 hr. 500 hr. 500 hr. 500 hr.
Carbon Black Content D 1603 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0%
Carbon Black Dispersion D 5596 Note(1) Note(1) Note(1) Note(1) Note(1) Note(1) Note(1)
Oxidative Induction Time (OIT) (≥)
(a)Standard OIT
- or -
(b)High Pressure OIT


D 3895

D 5885


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.

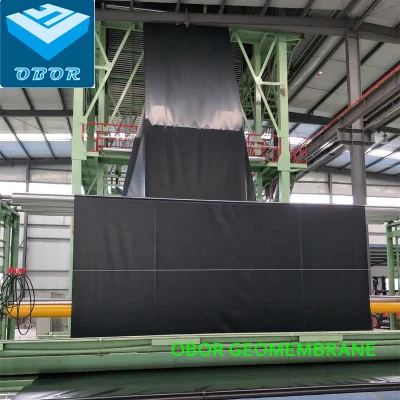

Geomembrane production
OBOR HDPE geomembrane is made by 100% virgin materials


500 Microns HDPE Geomembrane

OBOR geomembrane adopted the first class automatic production equipment and three-layer pressing technology. All geomembrane quality is meeting with GB, GRI and ASTM test standard.

Packing and Shipping

1.Packing: PP woven geotextile bags or PE film. Or according to customers requirements.
2.Delivery: Within 7-10 days after receiving your deposit.
                  Samples are free for your review.


500 Microns HDPE Geomembrane

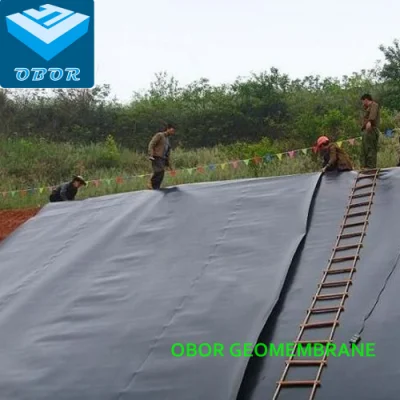

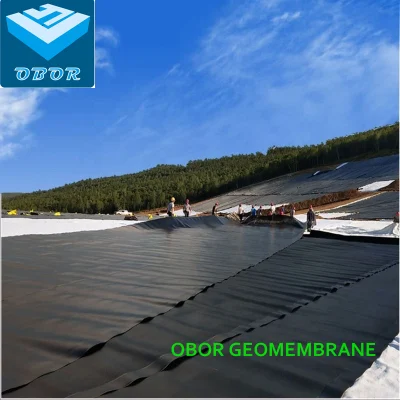

HDPE Geomembrane Application:
(1)Aquaculture:
        Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, tank liner and others.

(2)Landfill:
        HDPE geomembrane is the most widely used in landfill anti-seepage engineering material. The use of main parts of the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.

(3)Water Treatment System :
        HDPE geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool;and a series of water treatment systems.
(4)Mining:
          HDPE geomembrane suitable mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, storage area, the bottom line of the tailings seepage control, etc


500 Microns HDPE Geomembrane
Good quality and good services:
(1)Service:
A. OEM/ODM orders are warmly welcome

B. All of our products have proceeded testing before shipment and we guaranteed the good quality.

(2) Quality Control:

      We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
      Not only is stringent internal quality control carried out at OBOR, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States.

500 Microns HDPE Geomembrane500 Microns HDPE Geomembrane

Related Products---Geomembrane welder

500 Microns HDPE Geomembrane500 Microns HDPE Geomembrane

Company Information
      OBOR is a professional geosynthetic products manufacturing company
 with registered capital more than $ 5 million, covers an area of 100,000 square meters. The main products are HDPE / LDPE Geomembrane,Plastic Grass Grids, Woven/nonwoven Geotextile, Drainage Board, Composite Membrane and Textile,Plastic netting, 3D Planting Geomat, and other geosynthetic products.
     OBOR Company has altogether 26 production liners including HDPE/LDPE Geomembrane liners, Plastic Grass Grids liners, Nonwoven Geotextile liners, Woven Geotextile liners, Drainage Board liners, PlasticNetting liners from Germany, and variety testing machines.
      We are specialized in providing professional geosynthetics solutions for Road, Highway, Railway, Airport, Tunnel, Mine Supporting and Protecting, Hydro, Reinforced Steep Slopes, Reinforced Retaining Wall, Reinforced Embankments, Landfill, Containment, water conservancy facilities, soft foundation treatment and other related projects.

500 Microns HDPE Geomembrane500 Microns HDPE Geomembrane
