3D Geocomposite Drainage Geonet for Landfill

Get high-quality 3D Geocomposite Drainage Geonet for Landfill from our factory. We provide durable and efficient solutions for all your drainage needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
200/5mm/200
Feature
Corrosion Resistant, Oxidation Resistance, Wear-resistant
Specification
5mm, 200/6mm/200
Thickness of Geonet
4-8mm
Width
1-4m
Length
as Your Requirement
Unit Weight of Geotextile
100-300GSM
Raw Material of Geotextile
Pet/PP
Quality Warranty
24 Month
Technical Data Sheet
Yes
Free Sample
Yes
Transport Package
Black Woven Geotextile
Trademark
HONGXIANG
Origin
Dezhou, China
HS Code
5603949000
Production Capacity
5000sqm/Day

Product Description

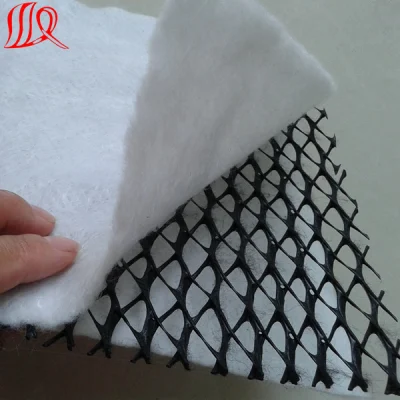

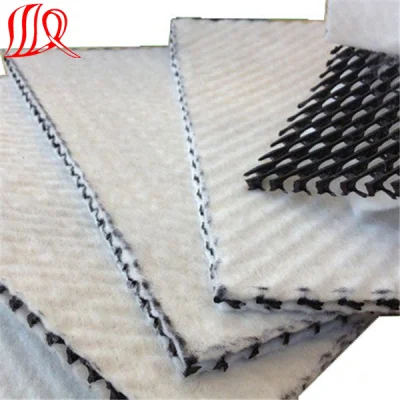

3D Geocomposite Drainage Net

Extruded high density polyethylene (HDPE) net drainage core with a nonwoven polypropylene (PP) or polyester (PET)geotextile filter/ separator bonded to both sides.
3D Geocomposite Drainage Geonet for Landfill
3D Geocomposite Drainage Geonet for Landfill
3D Geocomposite Drainage Geonet for Landfill
3D Geocomposite Drainage Geonet for Landfill




Application:

Typical Applications include:

    Highways: vertical edge-of-carriageway drains intercept the lateral flow of ground water. Modern fin drains reduce excavation, reduce backfill quantities and reduce installation time. In-slope drainage increases geotechnical stability.

    Retaining walls and bridge abutments: to reduce pore water pressure and avoid backfill saturation.

   Engineered landfills: with the additional requirement of long-term chemical resistance and high compressive strength.

    Tunnels: ground-water-seepage interception between rock face and the tunnel lining.

    Buried structures: vertical and horizontal drains for basements, culverts, car parks, reservoirs, etc.
3D Geocomposite Drainage Geonet for Landfill



Features:

 Net drainage geocomposites are manufactured using a unique geotextile filter developed specifically for use in drainage geocomposites for its high tensile modulus and ability to prevent soil ingress into the void space of the drainage core.



The drainage cores are manufactured from HDPE nets which have been engineered to have good flow under high loading.

Package information:

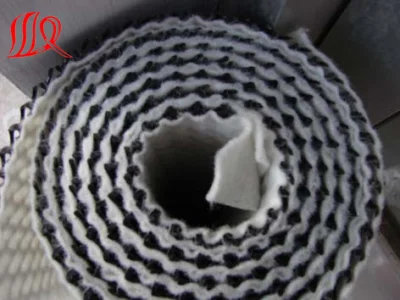

1. Roll size: 2m*30/50m or 3.9*30/50m

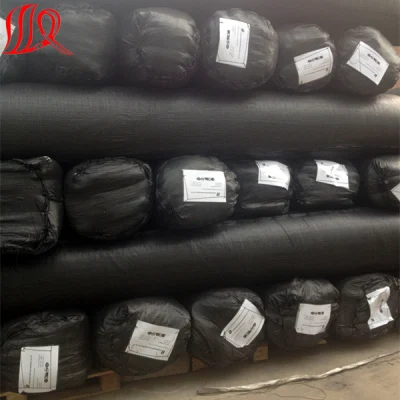

2. The outer package: black or white woven geotextile.

3. Different thickness/ roll size  for different qty in the same containers. so if you have any questions, please contact us.

3D Geocomposite Drainage Geonet for Landfill
3D Geocomposite Drainage Geonet for Landfill


Quality assurance

  1. On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections
  2.  Strictly in accordance with the ISO9001-2008 international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality
  3.    For quality-related construction delay or substandard construction(except for damage or losses due to customer's responsibility or irresistible natural disasters),we have refunding,replacement,and repair services.We will respond to customers' feedbacks on quality issues within 24 hours.



After-sales service

 1.In order to provide customers with comprehensive technical support,we will provide technical and other related information upon request in a timely manner.

2.In required,we will appoint specialized technicians to the construction site to give technical trainings to construction people,and offer technical guidance throughout the whole construction process.

3.For damage due to shipment and delivery,after we receive the complaint,we will check the issure through provided pictures and videos.If our responsibility is confirmed,we wil offer free replacement.

4.When the construction is completed,as your request,our technical staff may participate in the final acceptance.

Company information


3D Geocomposite Drainage Geonet for Landfill
Hongxiang New Geo-Material Co.,Ltd in leader of the geotextile, geomembrane and GCL in China. It was set up in June,1987 and become a provincial enterprise in Oct.1997. It occupies a land of 300,000 square meters, with total asset RMB320,000,000. There are 1200employees, among them, there are 268 professional and technical personnel. We have 56 production lines mainly produce needle-punched geotextile, filament spunbond geotextile, high strength geotextile, 3-layer co-extrusion geomembrane, dripping membrane, heart treated compound geomembrane 8m in width. PE/PVC/EVA press prolong geombrane, textured geomembrane, ant-skid geomembrane, uniaxial geogrid, biaxial geogrid, steel-plastic geogrid, geocell, geomat, woven geotextile, split yarn woven geotextile and so on. Owning the word leading production line of geosynthetics. We have our own R&D department and our own test room which reach to national level.
At present, we are one of the largest manufacturers of geosynthetic in China. Our trademark is "Hongxiang", registered in 2000. We passed the evaluation of ISO9001 in 2001 as well as ISO14001 certification. Our products were appraised as qualified products during the National Product Quality Selective Examination in 2004. We participated in the drafting of the National Standard of Geosynthetics of the People's Republic of China in 1998. We are also a participator to draft two national standards of short fiber needle-punched geotextile and non-woven compound geomembrane.

 3D Geocomposite Drainage Geonet for Landfill
