3D Drainage Geomat for Pavement Construction

Choose our 3D Drainage Geomat for pavement construction. We are a factory specializing in high-quality construction materials. Contact us today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
5.5mm
Material
PET
Type
Composite Geotextile
Width
1-4m
Length
30m/50m
Standard
ASTM/GB
Certificates
ISO/BV/SGS
Raw Material of Non Woven Geotextile
Polypropylene/Polyester
Thickness of Geonet
5-8mm
Unit Weight of No Woven Geotextile
100GSM-300GSM
Transport Package
by Black Woven Geotextile in Roll
Specification
5-8mm
Trademark
Hongxiang
Origin
Shandongdezhou
HS Code
5603949090
Production Capacity
5000 Sqm

Product Description

Product description

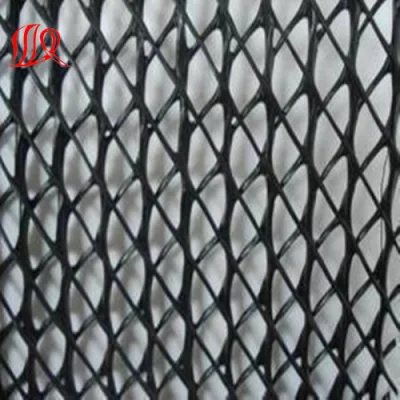

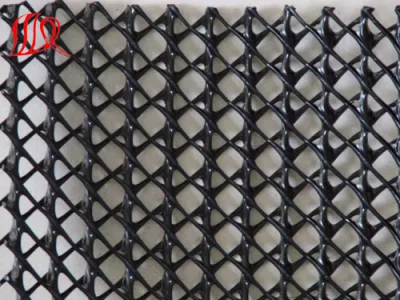

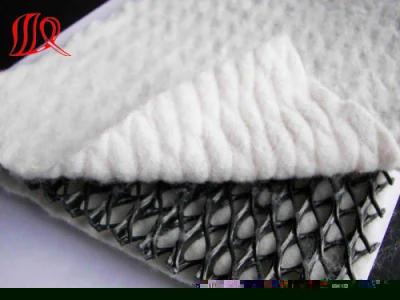

Three dimensional composite drainage network is a new type of geosynthetics. Its structure is a three dimensional geonet core, and there are needle punched non woven geotextiles on both sides. The three dimensional geogrid core consists of a thick vertical rib and an inclined rib at the top and bottom, which can rapidly drain the around water from the road.
It also has a pore maintenance system, which can block capillary water under high load. At the same time, it
can also play the role of isolation and foundation reinforcement.
3D Drainage Geomat for Pavement Construction
3D Drainage Geomat for Pavement Construction

3D Drainage Geomat for Pavement Construction
3D Drainage Geomat for Pavement Construction


Advantage

Good flexibility and permeability
In coastal engineering, use its characteristics of good flexibility and permeability to buffer the impact energy of waves

Strong high pressure load
Can withstand a compression load of about 3000A for a long time

Good performance
Made with three-layer special structure, flexible and durable, strong acid and alkali resistance, not perishable, and long service life

Reduce cold expansion
Laying a three-dimensional composite drainage net can help reduce the impact of frost heave

Uniform mixing
It can hydrate the concrete evenly, whether it is for rigid roads or flexible road systems


Technical data sheet
Property Unit NLDG
50/D200
NLDG
63/D200
NLDG
70/D200
NLDG
80/D200
NLDG
90/D200
Test
Standard
Drainage Net Specification
Hydraulic conductivity (MD) m2/s 2.8×10-3 2.8×10-3 3.2×10-3 4.0×10-3 5 x10-3 ASTM D4716
Puncture Resistance KN/m 0.17 0.17 0.17 0.17 0.17 ASTM D7005
Core Material Geonet Specification
Thickness mm 5 6.3 7 8 9 ASTM D5199
Density g/cm-3 0.94 0.94 0.94 0.94 0.94 ASTM D1505
Carbon Black Content % 2 2 2 2 2 ASTM D1603
Tensile strength (MD) kN/m 8 10 12 14 16 ASTM D7199
Hydraulic conductivity (MD) m2/s 6 8 10 12 14 ASTM D4716
Geotextile Specification
Unit weight g/m2 200 200 200 200 200 /
Geotextile type Continuous filament non-woven geotextile

 Application
1) Landfill drainage;
2) Roadbed and road drainage;
3) Railway drainage, tunnel drainage, underground structure drainage.
4) The retaining back wall drainage,
5) gardens and sports grounds drainage.
3D Drainage Geomat for Pavement Construction
3D Drainage Geomat for Pavement Construction

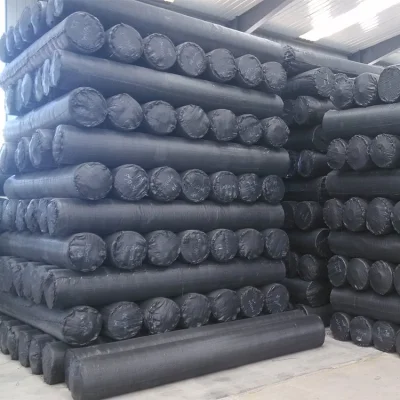

Package

3D Drainage Geomat for Pavement Construction
Our Services

Quality assurance
1.On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections
2.Strictly in accordance with the ISO9001-2008 international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality
3.  For quality-related construction delay or substandard construction(except for damage or losses due to customer's responsibility or irresistible natural disasters),we have refunding,replacement,and repair services.We will respond to customers' feedbacks on quality issues within 24 hours.

After-sales service
1.In order to provide customers with comprehensive technical support,we will provide technical and other related information upon request in a timely manner.
2.In required,we will appoint specialized technicians to the construction site to give technical trainings to construction people,and offer technical guidance throughout the whole construction process.
3.For damage due to shipment and delivery,after we receive the complaint,we will check the issure through provided pictures and videos.If our responsibility is confirmed,we wil offer free replacement.
4.When the construction is completed,as your request,our technical staff may participate in the final acceptance.



Company Information
  3D Drainage Geomat for Pavement Construction
Hongxiang New Geo-Material Co.,Ltd in leader of the geotextile, geomembrane and GCL in China. It was set up in June,1987 and become a provincial enterprise in Oct.1997. It occupies a land of 300,000 square meters, with total asset RMB320,000,000. There are 1200employees, among them, there are 268 professional and technical personnel. We have 56 production lines mainly produce needle-punched geotextile, filament spunbond geotextile, high strength geotextile, 3-layer co-extrusion geomembrane, dripping membrane, heart treated compound geomembrane 8m in width. PE/PVC/EVA press prolong geombrane, textured geomembrane, ant-skid geomembrane, uniaxial geogrid, biaxial geogrid, steel-plastic geogrid, geocell, geomat, woven geotextile, split yarn woven geotextile and so on. Owning the word leading production line of geosynthetics. We have our own R&D department and our own test room which reach to national level.

    Our annual productivity is as below: 50 million square meters of needle-punched geotextile; 55 million square meters of compound geomembrane; 9,000 metric tons of PE geomembrane; 36 million square meters of macromolecule waterproof materials; 8 million square meters of geosynthetic clay liners (GCL); 5 million square meters of single direction geogrid; 8 million square meters of double-direction geogrid; 1 million square meters of geocell; 4 million square meters of geonet; 3 million square meters of tri-dimensional geomat; 10 million square meters of woven geotextile; 9,000 metric tons of geomembrane; 300 metric tons of PP long fiber; 4,000 metric tons of PP long fiber; 6 million plastic woven bags.

At present, we are one of the largest manufacturers of geosynthetic in China. Our trademark is "Hongxiang", registered in 2000. We passed the evaluation of ISO9001 in 2001 as well as ISO14001 certification. Our products were appraised as qualified products during the National Product Quality Selective Examination in 2004. We participated in the drafting of the National Standard of Geosynthetics of the People's Republic of China in 1998. We are also a participator to draft two national standards of short fiber needle-punched geotextile and non-woven compound geomembrane.
3D Drainage Geomat for Pavement Construction
3D Drainage Geomat for Pavement Construction



FAQ:
1. Where is our company located ?
 Economic Development Zone, Ling County, Dezhou City, Shandong Province. China.
2. Can you send samples to us ?
Yes , free samples could be provided , but customer need pay for the freight cost .  After order placed , the freight charge could be refund .
3. What's your Payment term ?
  T/T , L/C , Western Union.
4. What's your delivery method ?
  By sea , By train , By ari, depend on your country.
5. What's your MOQ quantity ?
   MOQ is one 20' container , the quantity could be  negotiable .
