150mm High 445mm Welding Distance Textured Geocells for Retaining Wall

Get high-quality 150mm High 445mm Welding Distance Textured Geocells for your retaining wall at our factory. Durable and reliable construction solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HS150-445
Thickness
1.1mm-1.6mm
Surface
Non-Perforated
Certifications
Ce ISO14001 ISO9001
Welding Distance
330mm-1000mm
Expanding Size
4.5*5 M2
Product Name
HDPE Geocell
Transport Package
Export Package or Per Demand
Specification
Height: 5cm
Trademark
Haisan
Origin
Qingdao, China
HS Code
392590
Production Capacity
100000 Square Meters Per Month

Product Description

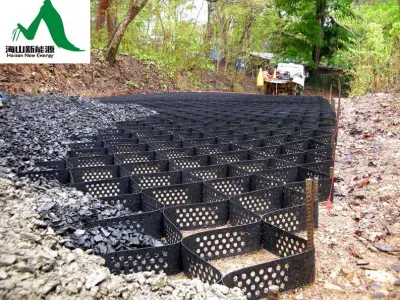

150mm High 445mm Welding Distance Textured Geocells for Retaining Wall

Product Introduction:

The geocell is the sheet material which is made by the polyester plastic and the 3D network structure material which becomes after the high strength ultrasonic welding, it uses the local material, the sand, the crushed stone, the soil to take the packing material, forms the general structure the combination material, realize the high bearing capacity, both may form the stable roadbed, and may on turfing, the afforested stable side slope.

Haisan Geocell is made of a new type of high strength geosynthetics, which is popular with both domestic and abroad, in accordance with GB/T 19274-2003 implementation of the standards, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Easily folding and convenient for transportation. When be in construction, the geocell can be pull into a network and launched into a three dimensional honeycomb grid. As it filled in soil, macadam, concrete or other granular material, constituted to be a construction which has strong side wise restraint and high rate of stiffness.

150mm High 445mm Welding Distance Textured Geocells for Retaining Wall



Features:


1. Light material, resistant o wear and chemical properties stability, lightfastness aging, acid and basic resistance, applicable to the different soil and geological conditions of the desert.


2.The lateral limits and higher anti-skid and anti-deformation, effectively increase the carrying capacity of roadbed and decentralized load.

3.High capacity and good dynamic performance, anti-erosion ability.

4.A high degree of geocell change, such as welding geometry from different projects can meet the needs.

5.Flexibility,small transport to connect to facilitate the construction speed.

6.The construction of local materials can reduce construction costs, superimposed with convenient for transportation.

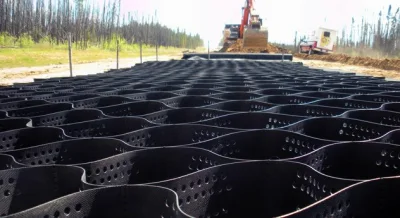

150mm High 445mm Welding Distance Textured Geocells for Retaining Wall

Technical Data Sheet:

specification height of chamber(cm) Weld spacing (mm) Expanding size(m2)
DTGS 5 5 400 4.5*5
DTGS 5  5 300 6.5*4.5
DTGS 8  8 1000 13.2*4.5
DTGS 8 8 400 4.5*5
DTGS 8 8 330 6.5*4.5
DTGS 10 10 400 4.5*5
DTGS 10 10 330 6.5*4.5
DTGS 15 15 400 4.5*5
DTGS 15 15 330 6.5*4.5
DTGS 20 20 400 4.5*5
DTGS 20 20 330 6.5*4.5

Item Term Test measure
Tensile strengthmeter for piece kmaterial  MPa ≥23 GB1040-1992
Weld tensile strength N/10cm ≥1000 GB1040-1992
Tensile failure% ≥600 GB1040-1992
Low embrittlement temperature  ≤-23




HDPE Geocell Specification:

1. Geocell Height (D): 50mm, 75mm, 100mm, 150mm, 200mm

2. Geocell Welding Distance (C): 300mm -- 1000mm

3. Geocell Sheet Thickness: 1.0mm, 1.1mm, 1.2mm, 1.5mm, 1.6mm

4. Geocell Surface: Smooth / Textured  ,    Perforated Or Without

5. Geocell Color: Black, Green, Yellow

6. Loading: 20ft container, 40ft high container


Production:

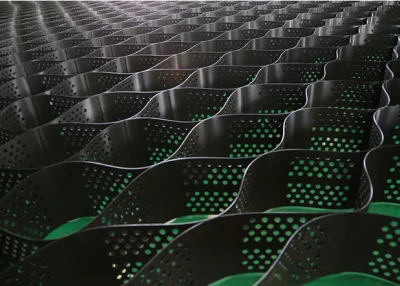

150mm High 445mm Welding Distance Textured Geocells for Retaining Wall


Application:

1. Slope Protection
The geocell Slope protection system prevents sliding or sloughing off by providing sufficient weight at the foot and or along the face of the slope.

2. Earth Protection
The geocell earth protection system minimizes and eliminates erosion actions of wind and water on exposed soils.

3. Channel Protection
The geocell channel protection system protects channel slops from soil erosion and confines the infill material that from the channel bed and banks.

4. Ground Stabilization
The Geocell Ground Stabilization System provides cost-effevtive solution to ground stabilization project.

5. Vegetation Retention
The Geocell Vegetation retention system`s horizontal create a natural environment for sustainable vegetation and allow water to collect through the wall fascia, and minimizing run off.

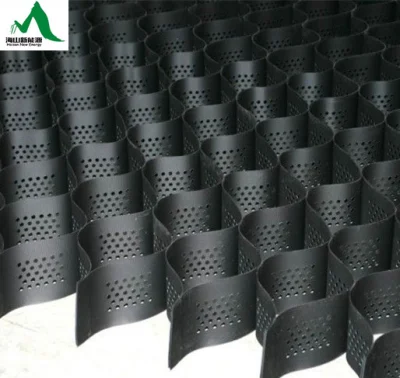

150mm High 445mm Welding Distance Textured Geocells for Retaining Wall

150mm High 445mm Welding Distance Textured Geocells for Retaining Wall


Contact:

Grace Sun
Qingdao Haisan New Energy Co.,Ltd.
Add:No. 155 Jia 13, Wenchang Road, Licang District, Qingdao 266041, Shandong, China.
Tel: +86-532-6688 3018                  Mobile/+86-15588646508
Website:  haisan.en.made-in-china.com

FAQ:

Q1. May I have the sample for testing?
A: Yes, we are glad to provide free samples within 1 week.
Q2. Can we use our own logo or design for sticker?
A: Yes, you can , you can contact with the salesman, please send an email to her /him and tell.
Q3. What certification do you have?
A:CE,ISO9001/ISO14001/OHSAS18001 etc.
